P82B96P
2-bit bidirectional 2- to 15-V 400-kHz I2C/SMBus buffer/cable extender
Availability: In Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the P82B96P by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

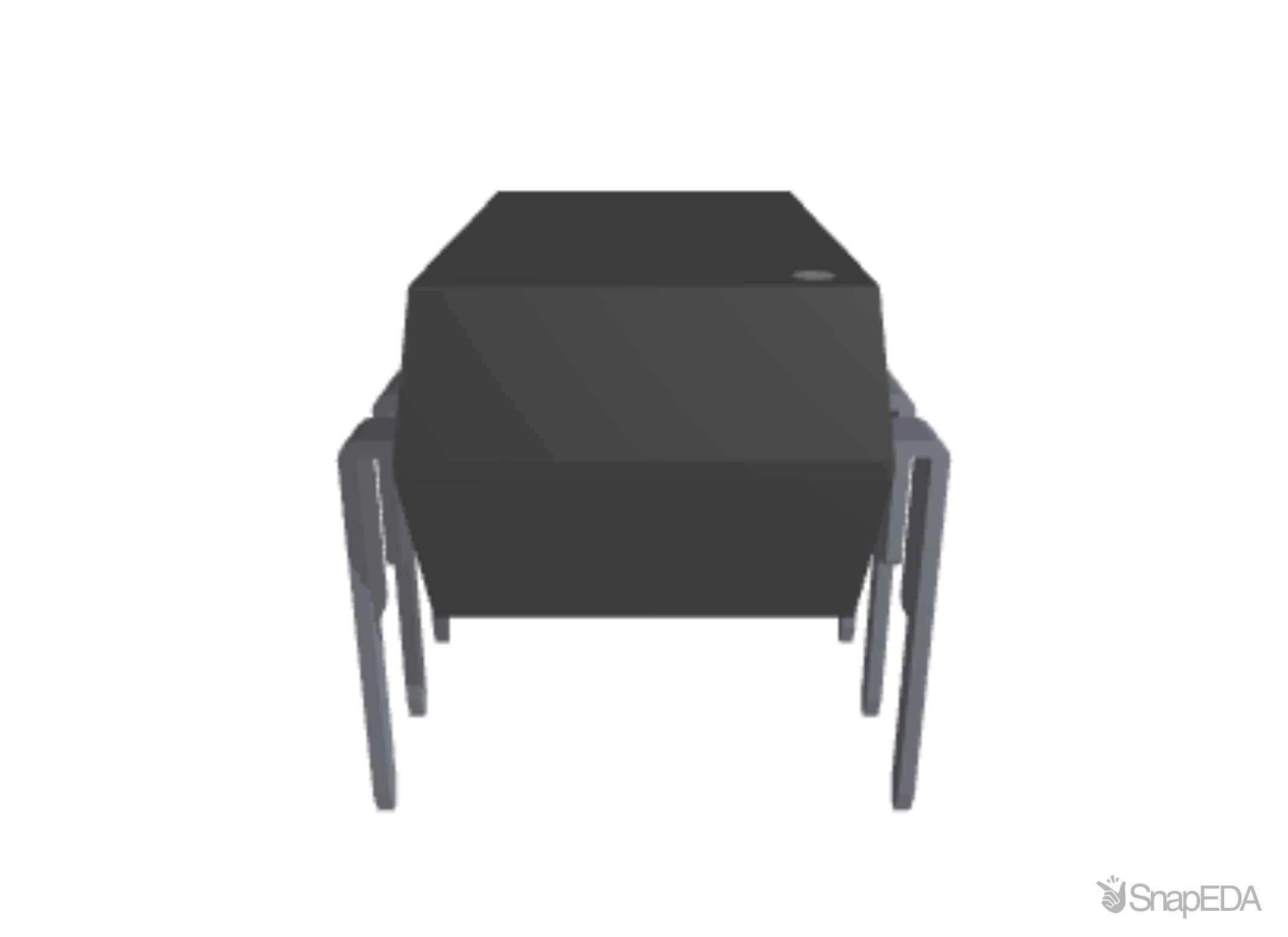

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the P82B96P
| Part Name | P82B96P |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Low Level Output Current (A) | 3 (mA) |
| Dimensions | 10.16 x 6.6 x 4.57 (mm) |
| Maximum Operating Supply Voltage (V) | 15 V |
| Maximum Propagation Delay Time @ Maximum Cl | 270 (ns) |
| Minimum Operating Supply Voltage (V) | 2 V |
| Logic Family | P82B96 |
| Height | 4.57 (mm) |
| Width | 6.6 (mm) |
| Length | 10.16 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
