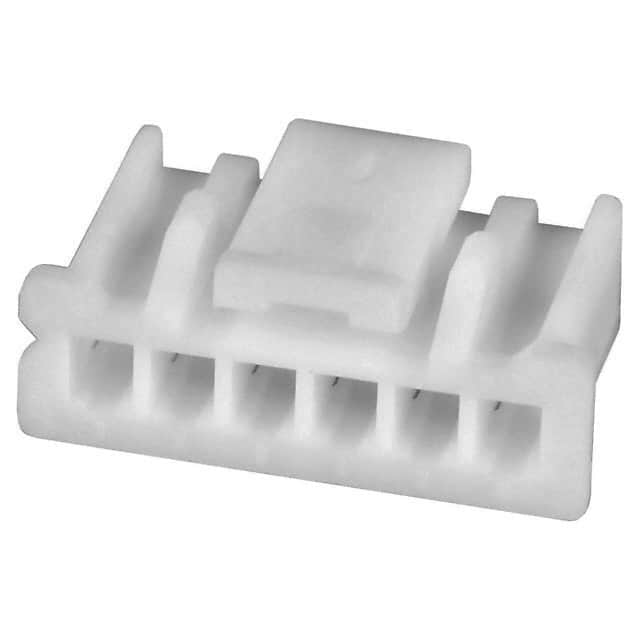

PAP-06V-S
6 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PAP-06V-S by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PAP-06V-S
| Part Name | PAP-06V-S |
| Manufacturer | JST |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Mounting Type | Cable Mount |
| Gender | Female |
| Series | PA |
| Body Orientation | Straight |
| Pitch | 2 (mm) |
| Housing Material | Nylon |
| Width | 5.8 (mm) |
| Length | 14 (mm) |
| Number Of Rows | 1 |
| Distrelec Product Id | 30409583 |
| For Use With | Crimp Connector |
| Number Of Contacts | 6 |
