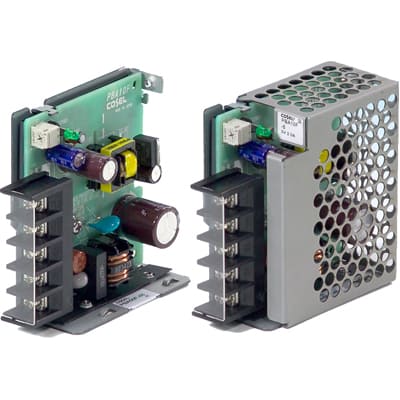

PBA10F-12-N
Power Supply,AC-DC,12V,0.9A,85-264V In,Enclosed,Panel Mount,PFC,11W,PBA Series | Cosel U.S.A. Inc. PBA10F-12-N
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PBA10F-12-N by Cosel and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PBA10F-12-N
| Part Name | PBA10F-12-N |
| Manufacturer | Cosel |
| Category | Power Products |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Maximum Temperature | +71 (°C) |
| Mounting Type | Chassis Mount |
| Weight | 150 (g) |
| Efficiency | 76 (%) |
| Minimum Temperature | -10 (°C) |
| Depth | 78 (mm) |
| Width | 34.5 (mm) |
| Length | 84.5 (mm) |
| Input Voltage (V) | 110 → 370 V dc, 85 → 264 V ac |
| Package Type | Enclosed |
| Output Voltage (V) | 12 (V dc) |
| Power Rating | 10.8 (W) |
| Output Current (A) | 900 (mA) |
