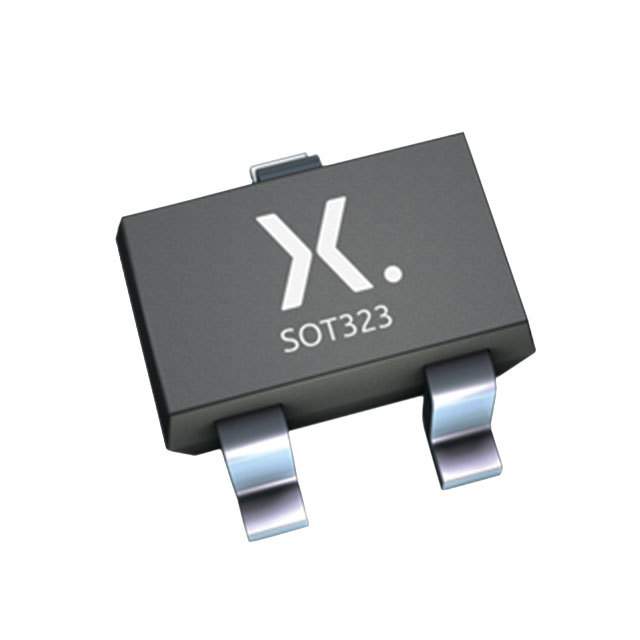

PBSS5160U,115
Bipolar (BJT) Transistor PNP 60 V 700 mA 185MHz 415 mW Surface Mount SOT-323
Availability: In Stock
Package Type: SC-70-3
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PBSS5160U,115 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

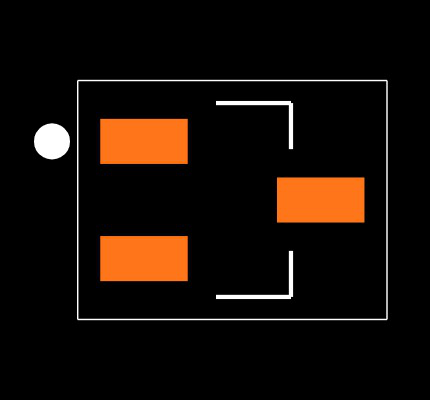

BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PBSS5160U,115
| Part Name | PBSS5160U,115 |
| Manufacturer | Nexperia |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Minimum Dc Current Gain (A) | 200 |
| Transistor Type | PNP |
| Dimensions | 1 x 2.2 x 1.35 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 415 mW |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | -60 V |
| Maximum Operating Frequency | 185 MHz |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | UMT |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | -1 A |
| Maximum Collector Base Voltage (V) | 80 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
Inventory for the PBSS5160U,115 by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17,696
|
|
Visit Site | |
|
★ Featured
|
8,860
|
|
Visit Site | |
|
★ Featured
|
120,000
|
2,365 x $0.15
|
Visit Site | |
| Verical |
12,000
|
|
Visit Site |
No issues have been reported for the PBSS5160U,115
