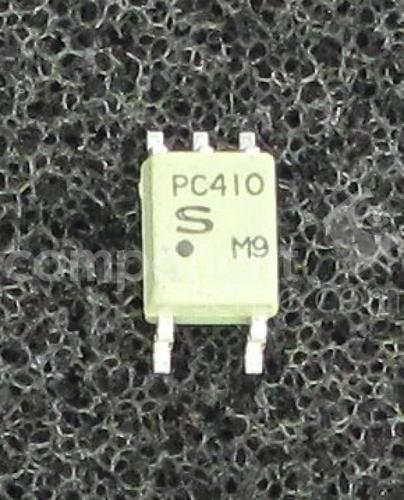

PC410
Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 5-SOP
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PC410 by Sharp and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PC410
| Part Name | PC410 |
| Manufacturer | Sharp |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Maximum Forward Voltage (V) | 1.9 (V) |
| Output Device | Phototransistor |
| Isolation Voltage (V) | 3.75 kV |
| Mounting Type | Surface Mount |
| Typical Rise Time | 10 (ns) |
| Number Of Pins | 5 |
| Maximum Input Current (A) | 50 mA |
| Logic Output | Yes |
| Typical Fall Time | 20 (ns) |
