PCL712A
Connector, Power, DC, Power Jack Locking 2.5mm PC mt | Switchcraft PCL712A
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PCL712A by SWITCHCRAFT and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

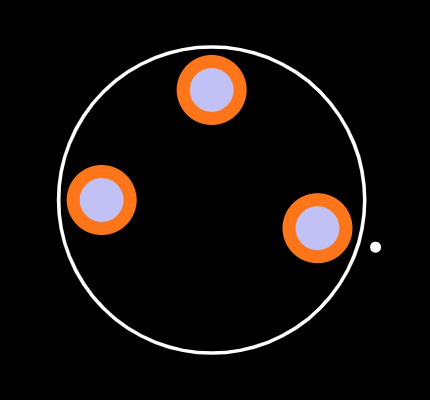

Footprint
No web preview
This Footprint is Available for

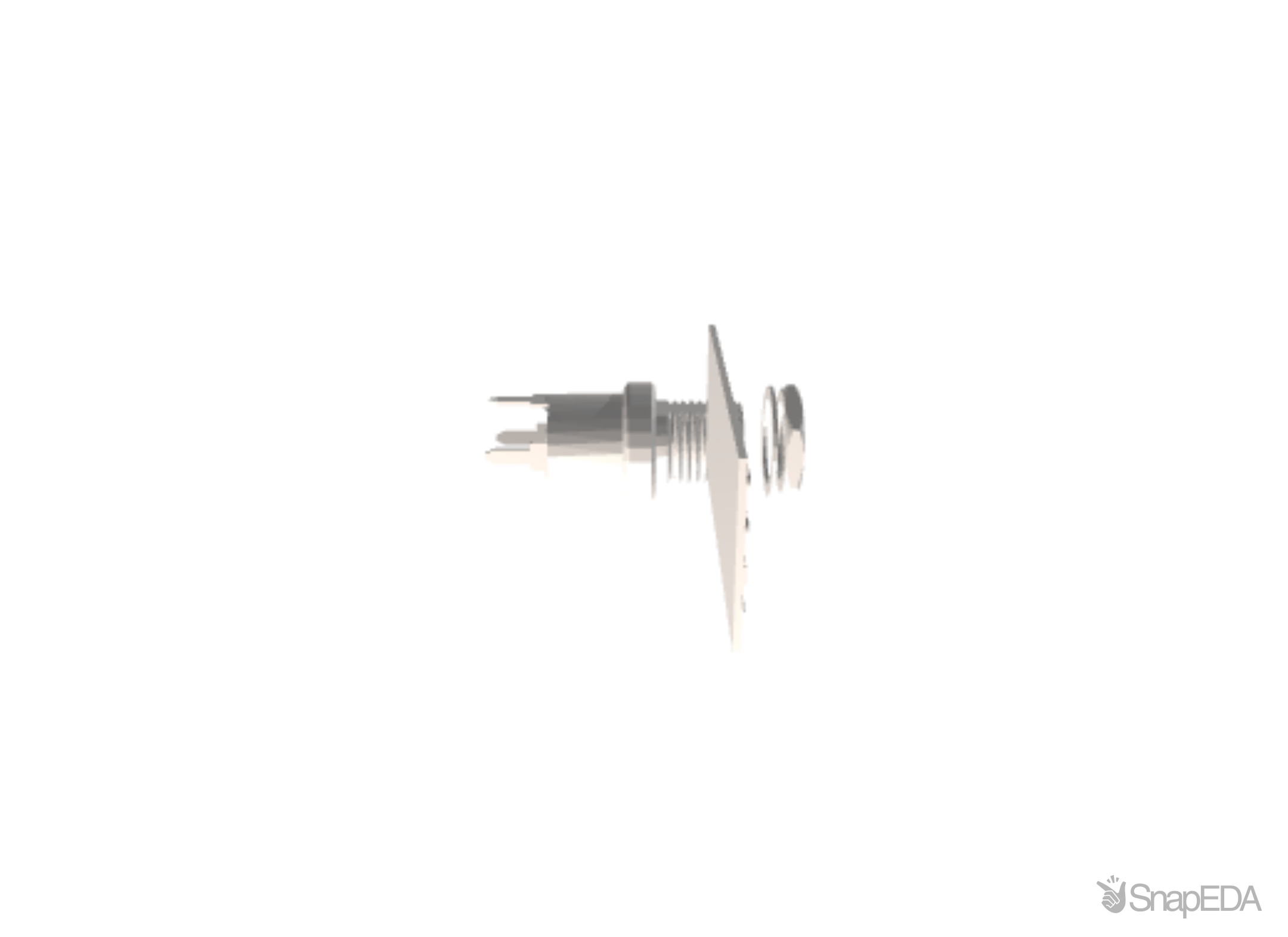

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PCL712A
| Part Name | PCL712A |
| Manufacturer | Switchcraft Inc. |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 5.0 (A) |
| Mounting Type | PCB Mount |
| Ip Rating | IP68 |
| Series | L Version |
| Body Orientation | Straight |
| Voltage Rating (V) | 12.0 V |
| Length | 21.0 (mm) |
| Contact Plating | Silver |
| Pin Diameter | 2.5 (mm) |
| Dc Power Connector Type | DC Socket |
| Contact Material | Copper Alloy |
Inventory for the PCL712A by SWITCHCRAFT from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
471
|
|
Visit Site | |
| Heilind Americas |
235
|
|
Visit Site | |
| Interstate Connecting Components |
78
|
|
Visit Site | |
| Onlinecomponents |
404
|
|
Visit Site | |
| RS Americas |
32
|
1 x $3.16
|
Visit Site | |
| Sager |
|
100 x $4.89
|
Visit Site | |
| Verical |
400
|
|
Visit Site |
No issues have been reported for the PCL712A
If you experienced any issues with the symbol or footprint, please report it.
