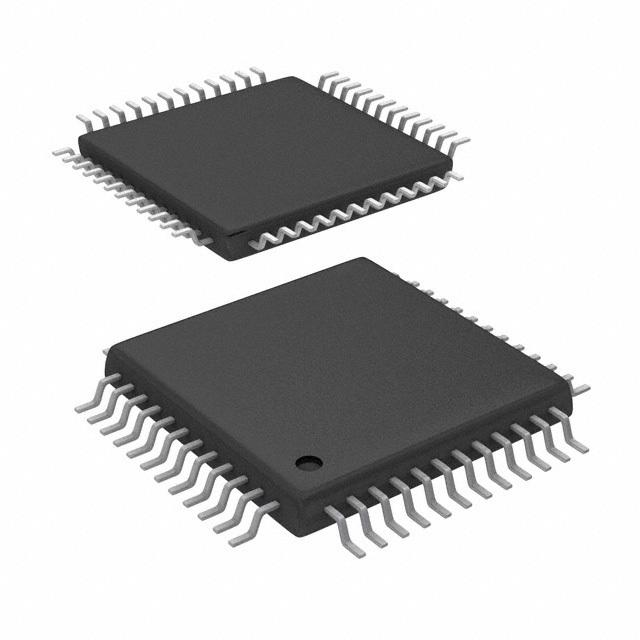

PCM4104PFBT
118dB SNR 4-Channel Audio DAC
Availability: In Stock
Package Type: TQFP-48
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PCM4104PFBT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PCM4104PFBT
| Part Name | PCM4104PFBT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Conversion Rate | 216 (ksps) |
| Dimensions | 7 x 7 x 1 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 4 |
| Power Supply Type | Single |
| Minimum Operating Temperature | -10 °C |
| Resolution | 24 bit |
| Digital Interface Type | Serial (SPI) |
| Typical Single Supply Voltage (V) | 5 V |
| Full Scale Error | 0.5 (%FSR) |
| Package Type | TQFP |
| Architecture | Delta Sigma |
| Output Polarity | Bipolar |
| Maximum Operating Temperature | 70 °C |
| Voltage Reference (V) | External |
| Pin Count | 48 |
