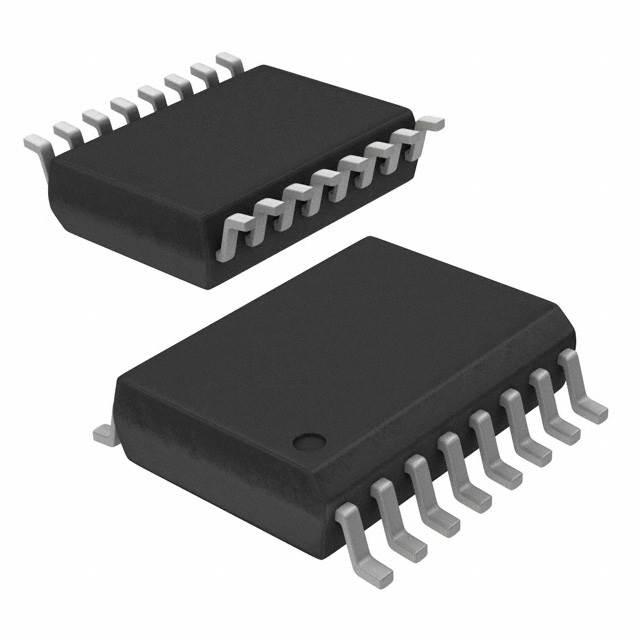

PCM56U
Series Input 16-Bit Monolithic Digital-to-Analog Converter
Availability: In Stock
Package Type: SOIC-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PCM56U by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

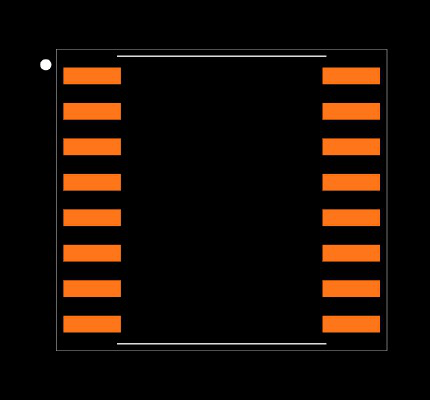

Footprint
No web preview
This Footprint is Available for

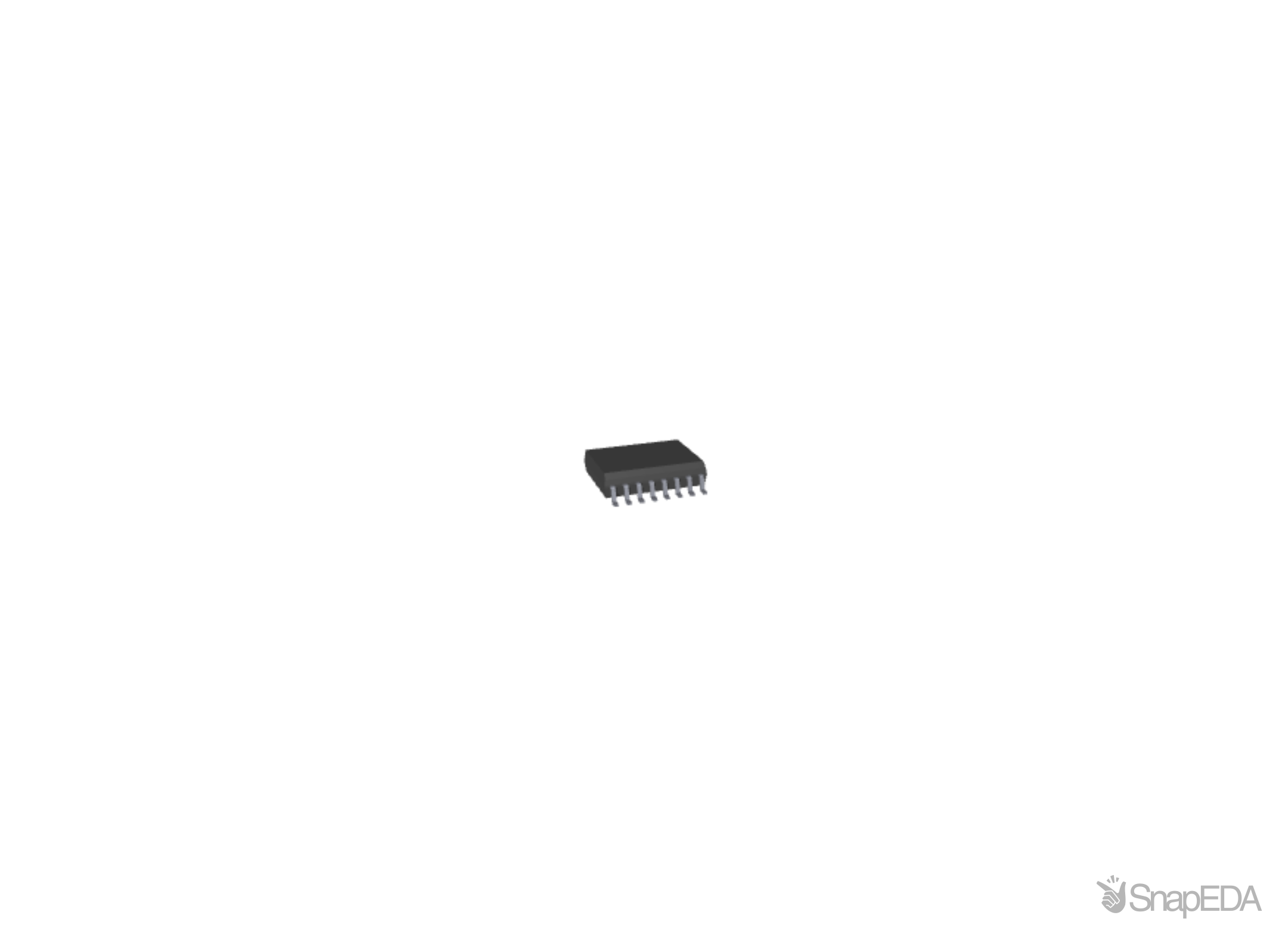

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PCM56U
| Part Name | PCM56U |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Polarity | Bipolar |
| Conversion Rate | 666 (ksps) |
| Dimensions | 10.28 x 7.52 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 1 |
| Power Supply Type | Dual |
| Resolution | 16 bit |
| Pin Count | 16 |
| Full Scale Error | ±2 (%FSR) |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Voltage Reference (V) | Internal |
| Maximum Operating Temperature | +70 °C |
| Maximum Settling Time | 1.5 (µs) |
| Digital Interface Type | Serial |
Inventory for the PCM56U by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
552
|
9 x $33.17
|
Visit Site | |
|
★ Featured
|
310
|
16 x $18.77
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site | |
| Verical |
532
|
|
Visit Site |
No issues have been reported for the PCM56U
