PE014024
SnapVerified
General Purpose Relay, Pe Series, Power, Non Latching, Spdt, 24 Vdc, 5 A
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PE014024 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

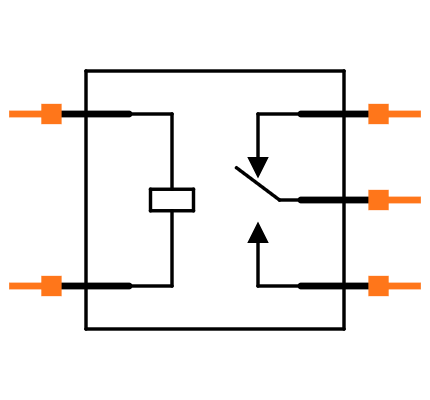

Symbol
No web preview
This Symbol is Available for

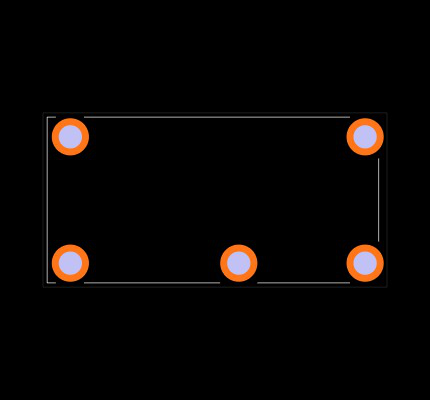

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PE014024
| Part Name | PE014024 |
| Manufacturer | TE Connectivity |
| Relay Mounting Type | Printed Circuit Board |
| Contact Current Class (A) | 5 – 10 |
| Contact Arrangement | 1 Form C (CO) |
| Contact Voltage Rating (V) | 250 |
| Insulation Clearance Class | 2.5 – 4 |
| Contact Number of Poles | 1 |
| Coil Voltage Rating (V) | 24 |
| Packaging Method | Carton |
| TE Internal Number | 1-1393219-0 |
| Coil Power Rating Class | 200 – 300 |
| Power Relay Type | Standard |
| Contact Current Rating (Max) (A) | 5 |
| Environmental Category of Protection | RTII |
| RoHS | True |
| Contact Material | AgNi |
| Coil Power Rating DC | 200 |
| Coil Resistance | 2725 |
| Coil Magnetic System | Monostable, DC |
| Terminal Type | PCB-THT |
| Contact Switching Voltage (Max) (V) | 400 |
| Insulation Creepage Class | 3 – 5.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | PCB Mount |
| Terminal Type | Through Hole |
| Series | PE |
| Latching | No |
| Coil Voltage (V) | 24 (V dc) |
| Number Of Poles | 1 |
| Depth | 10 (mm) |
| Contact Configuration | SPDT |
| Coil Resistance | 2725 (Ω) |
| Application | PCB |
| Length | 20 (mm) |
| Maximum Switching Voltage Ac (V) | 400 (V ac) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Switching Power Ac | 1.25 kVA |
| Height | 10 (mm) |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 5 (A) |
| Contact Material | Silver Nickel Alloy |
