PEC-07-01-T-S

Name: PEC-07-01-T-S
Brand: Samtec

SnapVerified

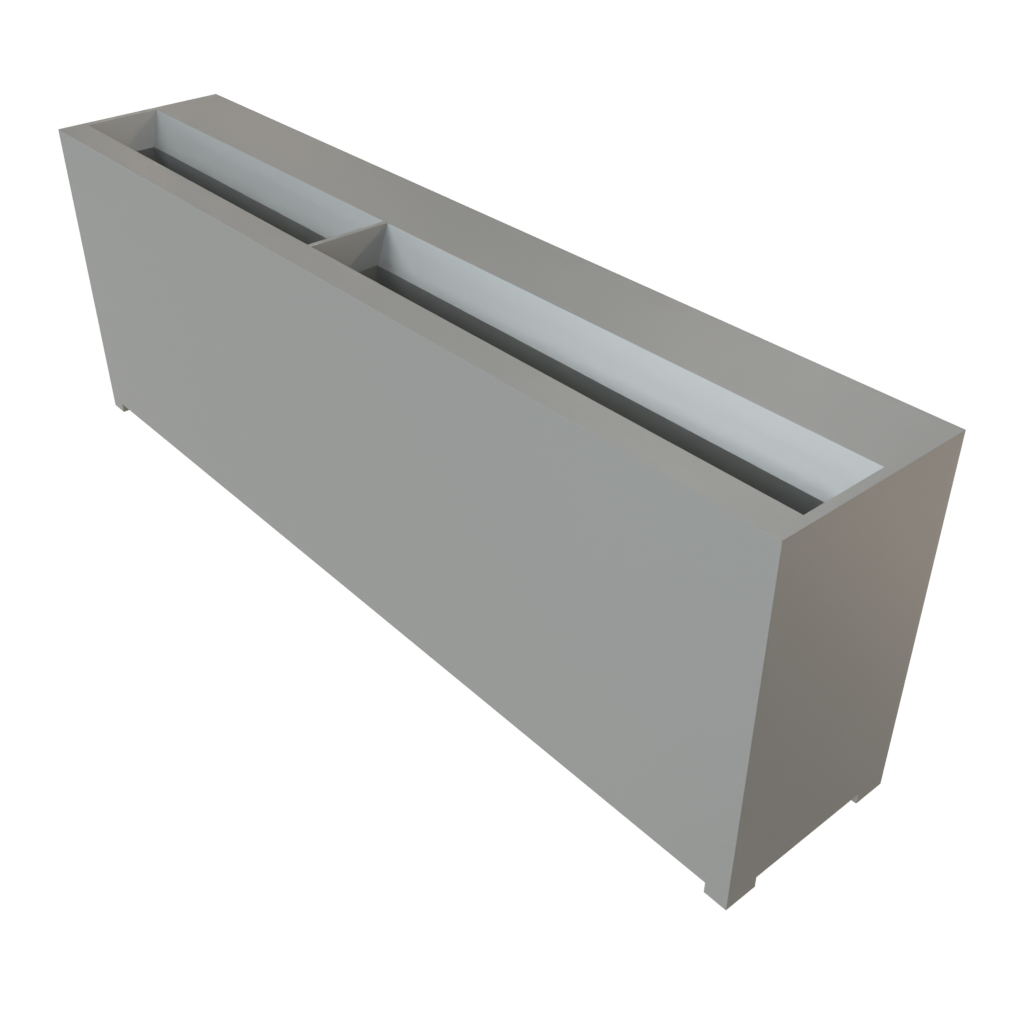

7 Position Female Connector Non Specified - Single Edge Tin 0.100" (2.54mm) Black

Availability: Out of Stock

Country of Origin: Malaysia

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Get this part

Arrival in under 3 days

Shop on Samtec.com

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the PEC-07-01-T-S by Samtec and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Samples

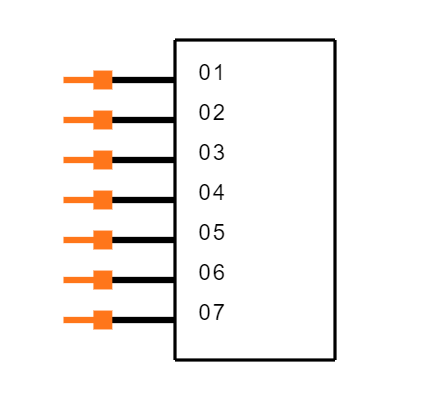

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

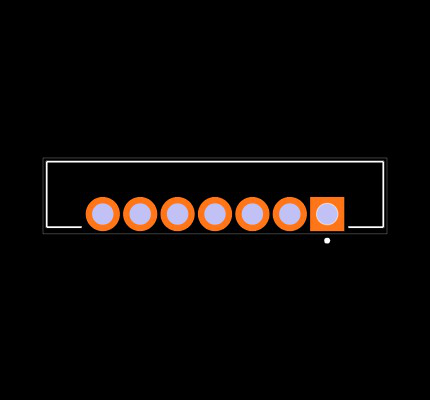

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

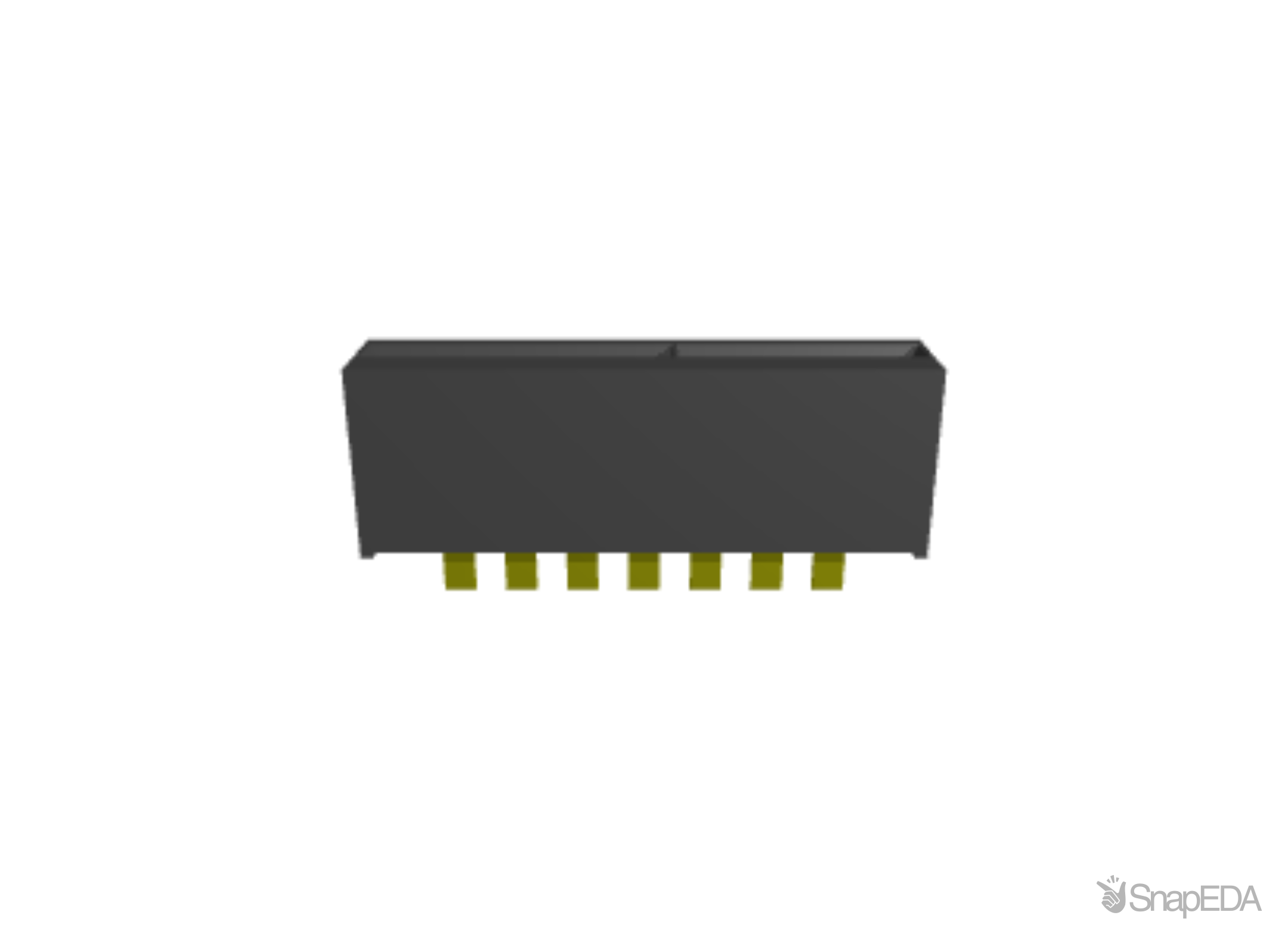

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the PEC-07-01-T-S

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the PEC-07-01-T-S

Part Name	PEC-07-01-T-S
Manufacturer	Samtec
HTS Number	8536.69
ECCN Category	EAR99
Series	PEC
Country of Origin	Malaysia
Packaging	Tube
Life Cycle Status	Production
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Current Rating (A)	9.8 (A)
Contact Plating	Tin over Nickel
Mounting Type	Through Hole
Voltage Rating (V)	250 V ac
Gender	Female
Body Orientation	Straight
Pitch	2.54 (mm)
Depth	7.9 (mm)
Termination Method	Solder
Housing Material	Liquid Crystal Polymer
Width	4.45 (mm)
Length	22.86 (mm)
Number Of Rows	1
Minimum Operating Temperature	-55 (°C)
Series	PEC
Number Of Contacts	7
Maximum Operating Temperature	+105 (°C)
Contact Material	Beryllium Copper
