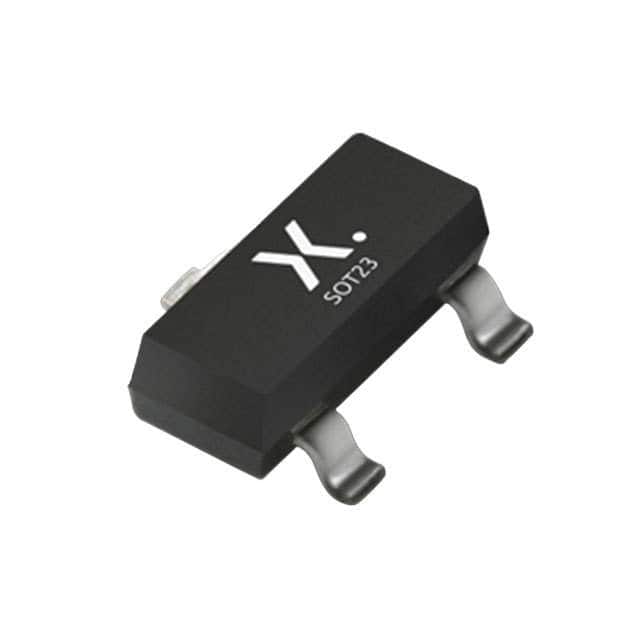

PESD3V3S2UT,215
20V Clamp 18A (8/20µs) Ipp Tvs Diode Surface Mount TO-236AB
Availability: Out of Stock
Package Type: SC-59
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PESD3V3S2UT,215 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PESD3V3S2UT,215
| Part Name | PESD3V3S2UT,215 |
| Manufacturer | Nexperia USA Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 18 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 3.3 (V) |
| Dimensions | 3 x 1.4 x 1 (mm) |
| Minimum Breakdown Voltage (V) | 5.2 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current (A) | 2 (µA) |
| Esd Protection | Yes |
| Height | 1 (mm) |
| Width | 1.4 (mm) |
| Length | 3 (mm) |
| Package Type | SOT-23 (TO-236AB) |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -65 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 20 (V) |
| Diode Configuration | Common Anode |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 330 (W) |
| Test Current (A) | 5 (mA) |
