PESD5Z5.0,115

Name: PESD5Z5.0,115
Brand: Nexperia

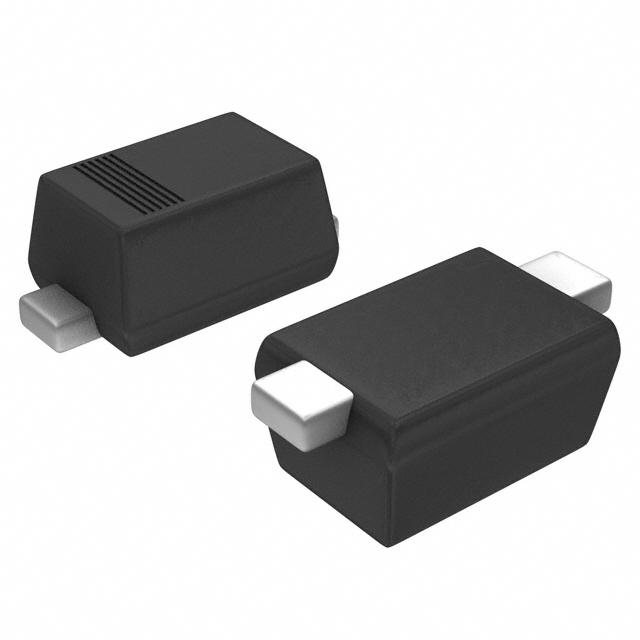

PESD5Z5.0 Series 89 pF Unidirectional ESD Protection Diodes - SC-79

Availability: Out of Stock

Package Type: SC-79-2

CAD Models: Footprint

Check availability

Check availability

Add to Library See Datasheet PDF Pricing

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the PESD5Z5.0,115 by Nexperia and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

The 2D model for this
part is not available.

We found a relevant part with 2D Models

View this part

The Exact Symbol for this part is not available.

Build

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the PESD5Z5.0,115

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the PESD5Z5.0,115

Part Name	PESD5Z5.0,115
Manufacturer	Nexperia USA
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Maximum Peak Pulse Current (A)	10 (A)
Maximum Reverse Stand-Off Voltage (V)	5 (V)
Dimensions	1.25 x 0.85 x 0.65 (mm)
Minimum Breakdown Voltage (V)	6.2 (V)
Direction Type	Uni-Directional
Maximum Operating Temperature	+150 °C
Maximum Reverse Leakage Current (A)	50 (nA)
Esd Protection	Yes
Height	0.65 (mm)
Width	0.85 (mm)
Length	1.25 (mm)
Package Type	SOD-523
Number Of Elements Per Chip	1
Minimum Operating Temperature	-65 °C
Mounting Type	Surface Mount
Maximum Clamping Voltage (V)	18 (V)
Diode Configuration	Single
Pin Count	2
Peak Pulse Power Dissipation	180 (W)
Test Current (A)	1 (mA)

We could not find inventory or pricing across major distributors for the PESD5Z5.0,115 by Nexperia.
