PESE1-S3-S12-M
SnapVerified
12 Vdc, 0.083 A, 1 W, 2.97 to 3.63 Vdc Input Range
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PESE1-S3-S12-M by Bel Fuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

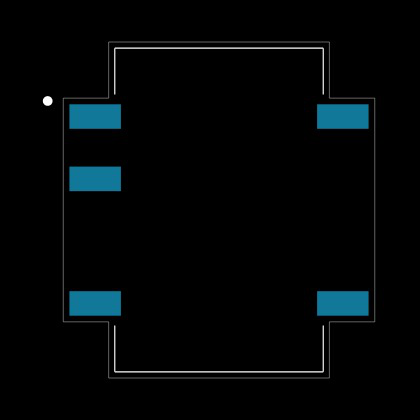

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PESE1-S3-S12-M
| Part Name | PESE1-S3-S12-M |
| Manufacturer | CUI Inc. |
| Safety Standards | 62368 |
| Dimensions (mm) | 15.24 x 11.40 x 7.25 (dual output) |
| Safety Approvals | CE |
| Operating Temp MAX (°C) | 85 |
| Input Ratio | 1:1 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/pese1-m-series |
| Standard Footprint | SMT8 |
| Power (W) | 1 |
| Input Voltage (Vdc) (V) | 2.97 ~ 3.63 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 12 |
| Nom. Input Voltage (Vdc) (V) | 3.3 |
| Regulation | No |
| Protections | Short Circuit |
| Package Type | SMT |
| Isolation (Vdc) | 3000 |
| Output Current (A) | 0.083 |
| Special Features | Extended Temp Range |
| Operating Temp MAX (With Derating, °C) | 105 |
| Series Power (W) | 1 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the PESE1-S3-S12-M by Bel Fuse from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
|
Visit Site |
No issues have been reported for the PESE1-S3-S12-M
