PFE500F-12
Enclosed AC DC Converters 1 Uitgang 12V - - - 42A 85 ~ 265 VAC Input
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PFE500F-12 by TDK-Lambda and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

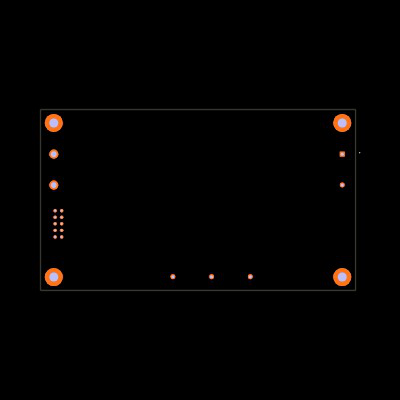

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PFE500F-12
| Part Name | PFE500F-12 |
| Manufacturer | TDK-Lambda |
| RoHS | True |
| Product Link | https://product.tdk.com/en/search/power/switching-power/ac-dc-converter/info?part_no=PFE500F-12 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Outputs | 1 |
| Maximum Temperature | +100 (°C) |
| Mounting Type | PCB Mount |
| Weight | 300 (g) |
| Width | 70 (mm) |
| Minimum Temperature | -40 (°C) |
| Length | 122 (mm) |
| Input Voltage (V) | 85 → 265 (V ac) |
| Efficiency | 83 (%) |
| Depth | 12.7 (mm) |
| Output Voltage (V) | 12 (V dc) |
| Package Type | Encapsulated |
| Power Rating | 504 (W) |
| Output Current (A) | 42 (A) |
No issues have been reported for the PFE500F-12
If you experienced any issues with the symbol or footprint, please report it.
