PGA206PA
5-MHz, 100-pA bias current, FET input programmable gain (g=1,2,4,8) instrumentation amplifier
Availability: In Stock
Package Type: PDIP-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PGA206PA by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

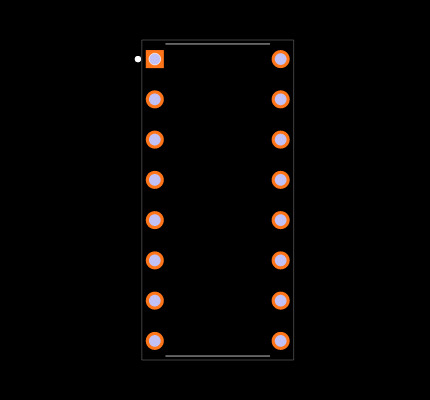

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the PGA206PA
| Part Name | PGA206PA |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Cmrr | 75 (dB) |
| Maximum Input Offset Voltage (V) | 2.5 (mV) |
| Typical Dual Supply Voltage (V) | ±15 (V) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Power Supply Type | Dual |
| Rail To Rail | No |
| Height | 4.57 (mm) |
| Width | 6.35 (mm) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Maximum Supply Current (A) | 12 mA |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
