PIC16F1827-I/SO
7 KB Flash, 384 bytes RAM, 32MHz Internal Oscillator, 16 I/0 | Microchip Technology Inc. PIC16F1827-I/SO
Availability: In Stock
Package Type: SOIC-18
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PIC16F1827-I/SO by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

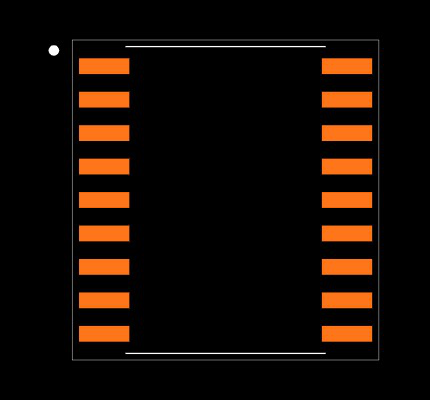

BuildFootprint
No web preview
This Footprint is Available for

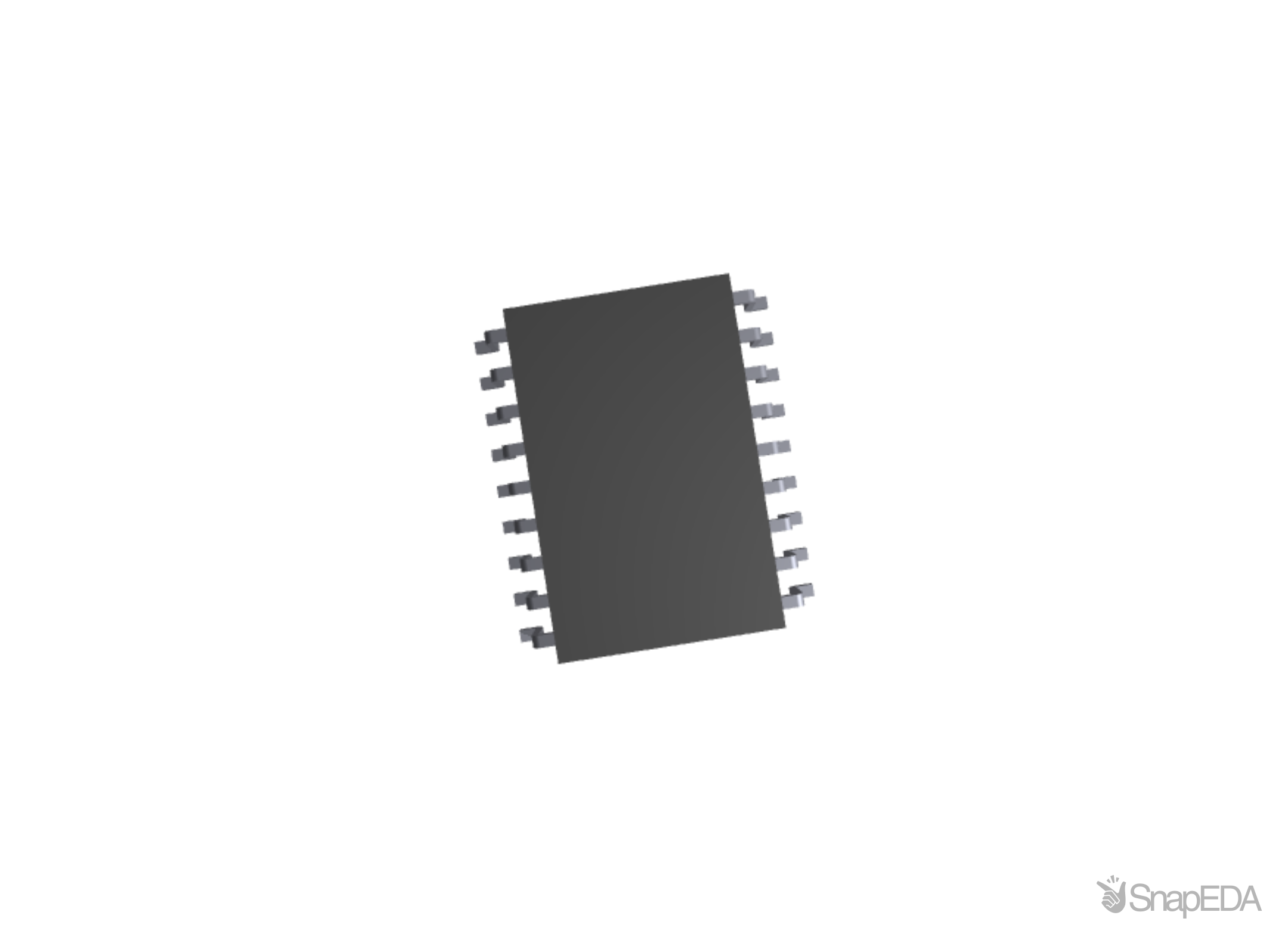

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PIC16F1827-I/SO
| Part Name | PIC16F1827-I/SO |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 11.55 x 7.5 x 2.35 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 7.5 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 256 B, 4K x 14 words |
| Number Of Spi Channels | 2 |
| Ram Size | 384 B |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | SOIC |
| Maximum Frequency | 32 (MHz) |
| Number Of Pwm Units | 4 |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 12 x 10 bit |
| Family Name | PIC16F |
| Device Core | PIC |
| Length | 11.55 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 18 |
| Pulse Width Modulation | 1 (ECCP Full Bridge), 1 (ECCP Half Bridge), 2 (CCP) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 2.35 (mm) |
| Typical Operating Supply Voltage (V) | 1.8 → 5.5 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 0 |
Inventory for the PIC16F1827-I/SO by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,400
|
|
Visit Site | |
|
★ Featured
|
2,724
|
|
Visit Site | |
|
★ Featured
|
5,040
|
277 x $1.08
|
Visit Site | |
| Arrow Electronics |
422
|
1 x $1.65
|
Visit Site | |
| Onlinecomponents |
840
|
|
Visit Site | |
| Verical |
8
|
|
Visit Site |
No issues have been reported for the PIC16F1827-I/SO
