PIC16F18344-I/SS
PIC PIC® XLP™ 16F, Functional Safety (FuSa) Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 20-SSOP
Availability: Out of Stock
Package Type: SSOP-20
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PIC16F18344-I/SS by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

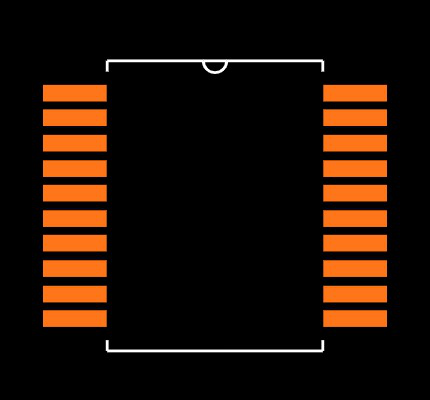

BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PIC16F18344-I/SS
| Part Name | PIC16F18344-I/SS |
| Manufacturer | Microchip |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 7.5 x 5.6 x 1.85 (mm) |
| Usb Channels | 0 |
| Width | 5.6 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 7 kB |
| Number Of Spi Channels | 1 |
| Ram Size | 4.096 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | SSOP |
| Adcs | 21 x 10 bit |
| Number Of Pwm Units | 1 x 10 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 32 (MHz) |
| Family Name | PIC18F |
| Device Core | PIC |
| Length | 7.5 (mm) |
| Number Of Ethernet Channels | 0 |
| Number Of Lin Channels | 1 |
| Pin Count | 20 |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 1.85 (mm) |
| Typical Operating Supply Voltage (V) | 2.3 → 5.5 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 1 |
