PIC16F873A-I/SP
Microcontroller 8bit PIC, 20MHz, 7.2kb, 128 B Flash, 28-Pin SPDIP | Microchip Technology Inc. PIC16F873A-I/SP
Availability: In Stock
Package Type: SPDIP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PIC16F873A-I/SP by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

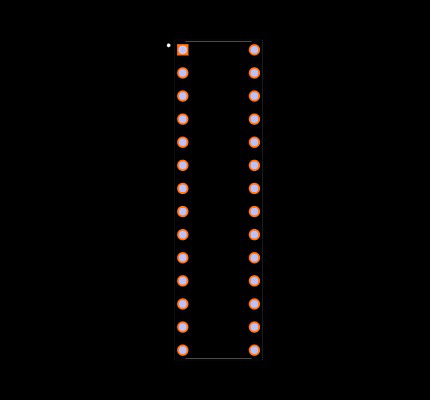

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PIC16F873A-I/SP
| Part Name | PIC16F873A-I/SP |
| Manufacturer | Microchip |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 35.18 x 7.49 x 3.43 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 7.49 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 7.2 kB, 128 B |
| Number Of Spi Channels | 1 |
| Ram Size | 192 B |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | SPDIP |
| Maximum Frequency | 20 (MHz) |
| Number Of Pwm Units | 2 x 10 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 5 x 10 bit |
| Family Name | PIC16F |
| Device Core | PIC |
| Length | 35.18 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 28 |
| Pulse Width Modulation | 2 (10 bit) (CCP) |
| Mounting Type | Through Hole |
| Number Of I2C Channels | 1 |
| Height | 3.43 (mm) |
| Typical Operating Supply Voltage (V) | 4 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 0 |
Inventory for the PIC16F873A-I/SP by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
257
|
|
Visit Site | |
|
★ Featured
|
517
|
1 x $5.78
|
Visit Site | |
|
★ Featured
|
36,000
|
82 x $3.69
|
Visit Site | |
| Onlinecomponents |
510
|
|
Visit Site | |
| Verical |
70
|
|
Visit Site |
No issues have been reported for the PIC16F873A-I/SP
