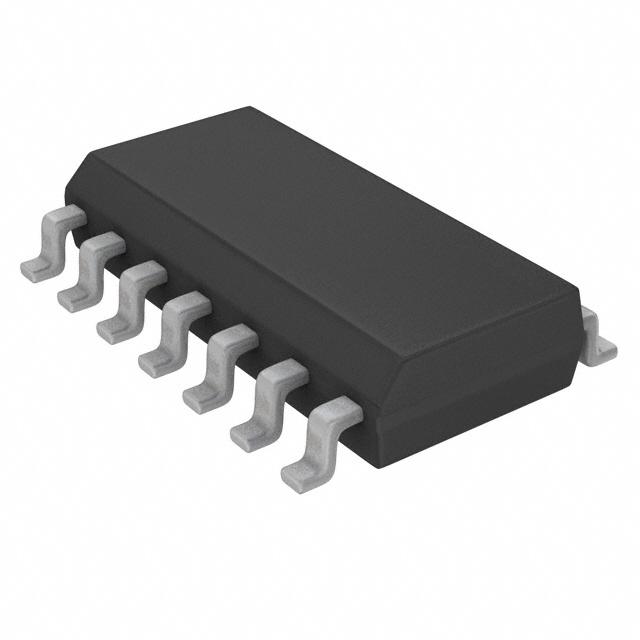

PIC16LF18325-I/SL
PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 14KB (8K x 14) FLASH 14-SOIC
Availability: In Stock
Package Type: SO-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PIC16LF18325-I/SL by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PIC16LF18325-I/SL
| Part Name | PIC16LF18325-I/SL |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 8.65 x 3.9 x 1.5 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 3.9 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 14 kB |
| Number Of Spi Channels | 2 |
| Ram Size | 1 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | SOIC |
| Maximum Frequency | 32 (MHz) |
| Number Of Pwm Units | 1 x 10 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 11 x 10 bit |
| Family Name | PIC16LF |
| Device Core | PIC |
| Length | 8.65 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 14 |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 1.5 (mm) |
| Typical Operating Supply Voltage (V) | 5.5 (Maximum) V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 1 |
Inventory for the PIC16LF18325-I/SL by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,519
|
|
Visit Site | |
|
★ Featured
|
3,285
|
1 x $1.19
|
Visit Site | |
|
★ Featured
|
8,000
|
54 x $6.53
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
698
|
|
Visit Site | |
| Newark |
698
|
|
Visit Site | |
| RS UK |
3,434
|
10 x $0.88
|
Visit Site | |
| Verical |
602
|
2 x $0.97
|
Visit Site | |
| element14 Singapore |
698
|
|
Visit Site |
No issues have been reported for the PIC16LF18325-I/SL
