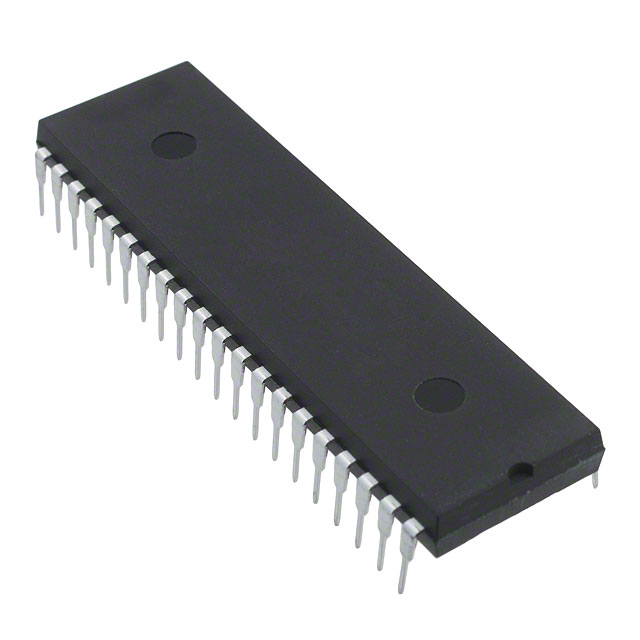

PIC18F4331-I/P
PIC18F4331-I/P,8bit PIC Microcontroller,40MHz,256 B,8192 B Flash,40-Pin PDIP | Microchip Technology Inc. PIC18F4331-I/P
Availability: In Stock
Package Type: DIP-40
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PIC18F4331-I/P by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

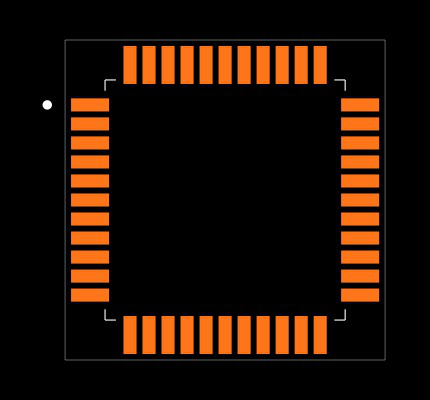

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PIC18F4331-I/P
| Part Name | PIC18F4331-I/P |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 10 x 1.05 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 10 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 8.192 kB, 256 B |
| Number Of Spi Channels | 1 |
| Ram Size | 768 B |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Maximum Frequency | 40 (MHz) |
| Number Of Pwm Units | 2 |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 9 x 10 bit |
| Family Name | PIC18F |
| Device Core | PIC |
| Length | 10 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 44 |
| Pulse Width Modulation | 2 (CCP) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 4.2 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 0 |
Inventory for the PIC18F4331-I/P by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
266
|
1 x $6.86
|
Visit Site | |
|
★ Featured
|
88
|
1 x $7.03
|
Visit Site | |
|
★ Featured
|
140
|
31 x $9.82
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Microchip Technology Inc |
980
|
|
Visit Site | |
| Newark |
|
1 x $7.07
|
Visit Site | |
| RS UK |
118
|
1 x $7.53
|
Visit Site | |
| TME |
5
|
1 x $11.54
|
Visit Site | |
| Verical |
5
|
5 x $16.49
|
Visit Site |
No issues have been reported for the PIC18F4331-I/P
