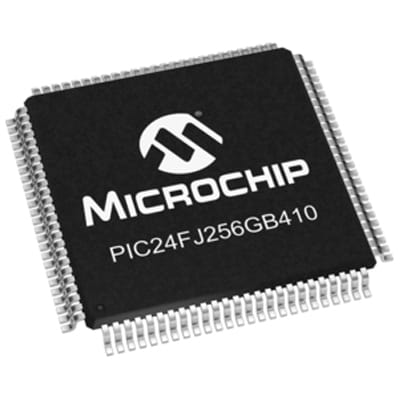

PIC24FJ256GB410-I/PT
16-bit, 16 MIPS, 256KB Flash, 16KB RAM, Hardware Crypto, XLP, LCD, USB OTG | Microchip Technology Inc. PIC24FJ256GB410-I/PT
Availability: In Stock
Package Type: TQFP-100
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PIC24FJ256GB410-I/PT by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

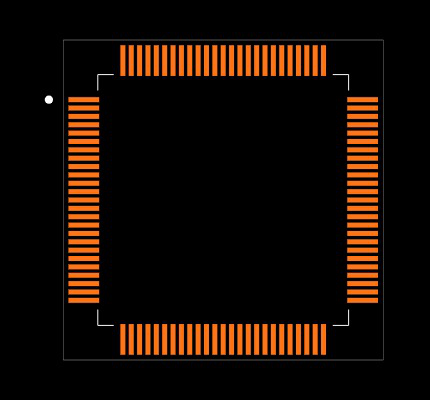

BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PIC24FJ256GB410-I/PT
| Part Name | PIC24FJ256GB410-I/PT |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 10 x 1.05 (mm) |
| Usb Channels | 1 |
| Width | 10 (mm) |
| Program Memory Size | 256 kB |
| Data Bus Width | 16 (bit) |
| Instruction Set Architecture | Modified Harvard |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Adcs | 24 x 10/12 bit |
| Number Of Pwm Units | 2 |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 32 (MHz) |
| Family Name | PIC24F |
| Device Core | PIC |
| Length | 10 (mm) |
| Ram Size | 16 kB |
| Pin Count | 100 |
| Pulse Width Modulation | 2 x 12 |
| Mounting Type | Surface Mount |
| Maximum Number Of Ethernet Channels | 0 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 2 → 3.6 V |
| Minimum Operating Temperature | -40 °C |
