PICOSMDC050S-2
Polymeric PTC Resettable Fuse 6V 500 mA Ih Surface Mount 0805 (2012 Metric), Concave
Availability: In Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PICOSMDC050S-2 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

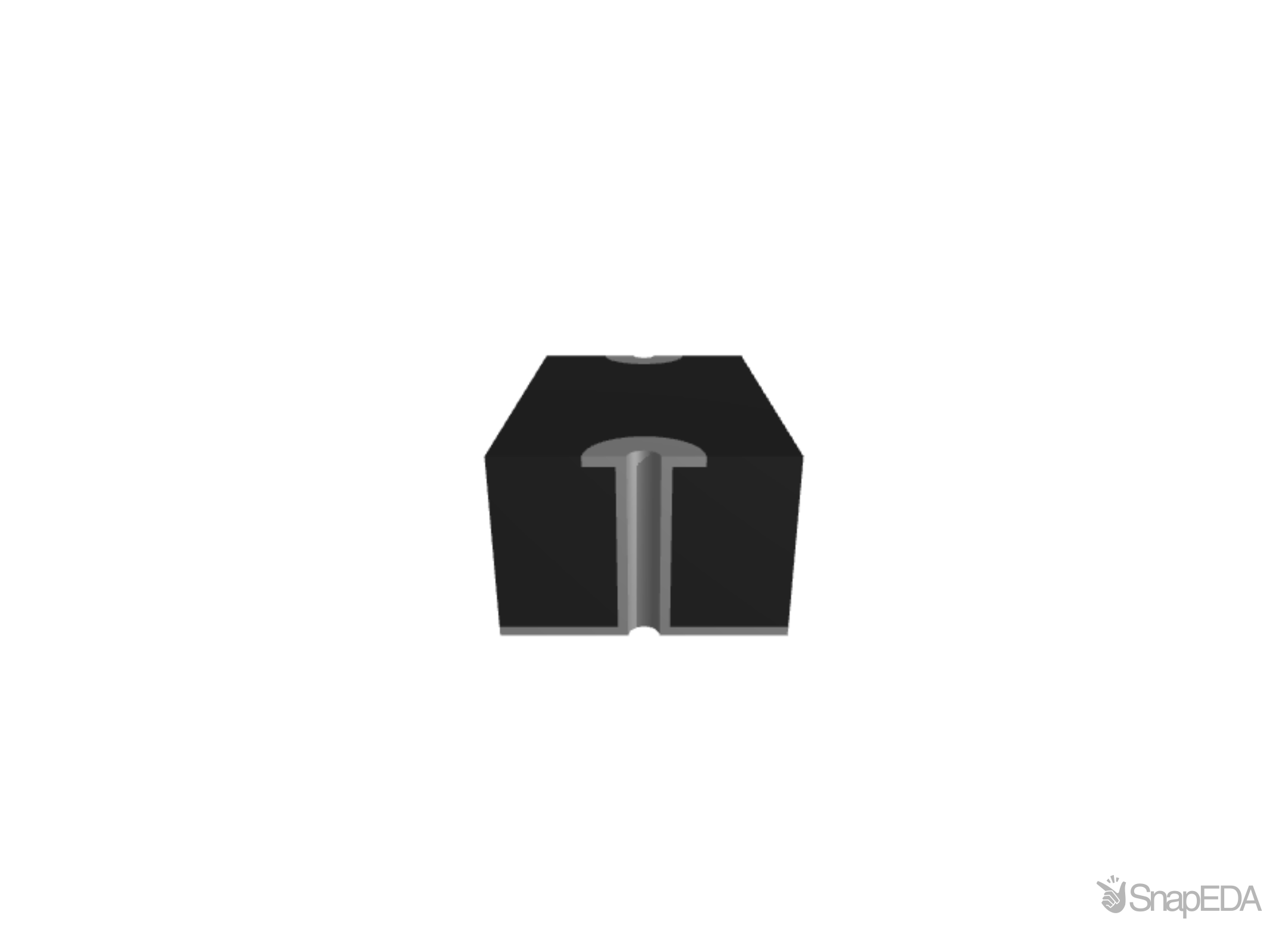

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PICOSMDC050S-2
| Part Name | PICOSMDC050S-2 |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.15 (Ω) |
| Maximum Resistance | 800 (mΩ) |
| Hold Current (A) | 0.55 (A) |
| Dimensions | 1.5 x 0.93 x 2.2 (mm) |
| Maximum Current (A) | 100 A |
| Operating Temperature Range | -40 → +85 °C |
| Series | PICOSMD |
| Terminal Material | Tin |
| Voltage Rating (V) | 6 (V dc) |
| Height | 2.2 (mm) |
| Width | 0.93 (mm) |
| Length | 1.5 (mm) |
| Trip Current (A) | 1.25 (A) |
| Time To Trip | 0.1 (s) |
| Power Dissipation | 0.5 (W) |
| Maximum Operating Temperature | +85 (°C) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the PICOSMDC050S-2 by Littelfuse from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,042
|
|
Visit Site | |
|
★ Featured
|
21,000
|
7,695 x $0.05
|
Visit Site | |
| Arrow Electronics |
39
|
|
Visit Site | |
| CoreStaff |
3,000
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| TTI Americas |
|
3,000 x $0.18
|
Visit Site | |
| Verical |
3,000
|
|
Visit Site |
No issues have been reported for the PICOSMDC050S-2
