PJ-013C
SnapVerified
1.0 x 4.2 mm, 3.5 A, Horizontal, Through Hole, Kinked Pins, Dc Power Jack Connector
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PJ-013C by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

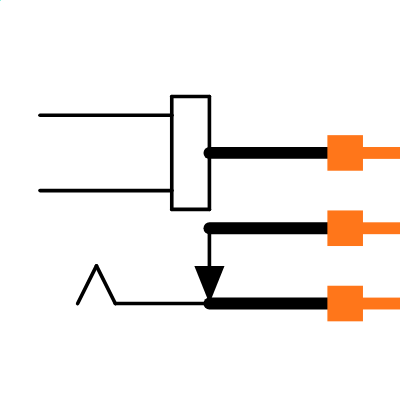

Symbol
No web preview
This Symbol is Available for

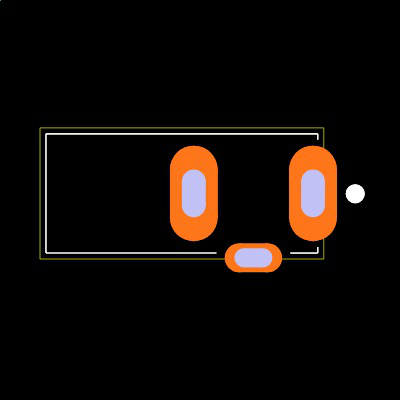

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PJ-013C
| Part Name | PJ-013C |
| Manufacturer | Same Sky |
| Mounting Style | Through Hole |
| Shielding | No |
| Orientation | Horizontal |
| Outer Diameter (mm) | 4.2 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pj-013c |
| Internal Switch(es) | 1 |
| Number of Conductors | 2 |
| Connector Type | Jack |
| Length (mm) | 11.4 |
| Width (mm) | 5 |
| Voltage Rating (Vdc) (V) | 24 |
| Insertion Depth/Length (mm) | 6.6 |
| Dimensions LxWxH (mm) | 11.4 x 5 x 7.4 |
| Inner Diameter (mm) | 1 |
| Dimensions LxWxH (in) | 0.45 x 0.2 x 0.29 |
| RoHS | True |
| Current Rating (A) | 3.5 |
| Height (mm) | 7.4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
