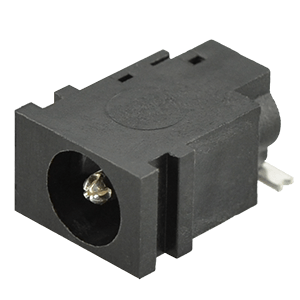

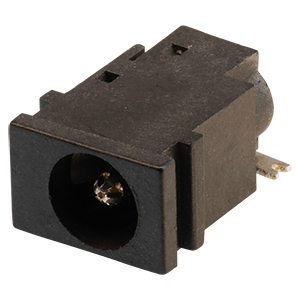

PJ1-021-SMT-TR
SnapVerified
1.65 x 5.15 mm, 5.0 A, Horizontal, Surface Mount (SMT), Dc Power Jack Connector
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PJ1-021-SMT-TR by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

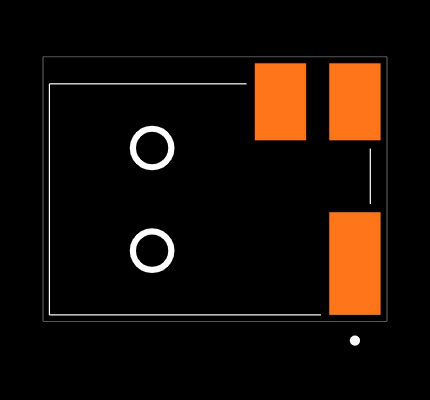

Footprint
No web preview
This Footprint is Available for

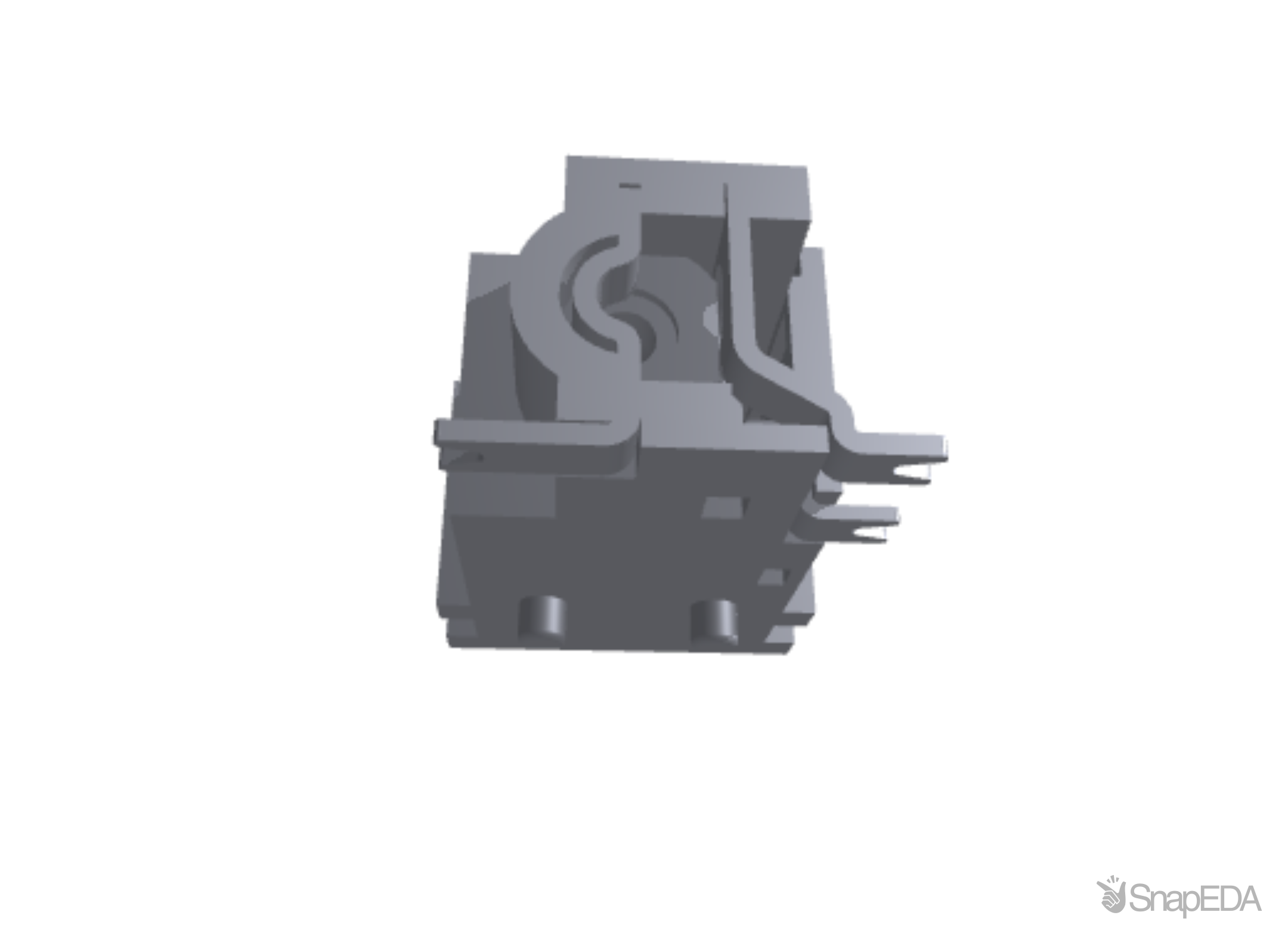

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PJ1-021-SMT-TR
| Part Name | PJ1-021-SMT-TR |
| Manufacturer | Same Sky |
| Mounting Style | Surface Mount |
| Shielding | No |
| Orientation | Horizontal |
| Outer Diameter (mm) | 5.15 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pj1-021-smt-tr |
| Internal Switch(es) | 1 |
| Number of Conductors | 2 |
| Connector Type | Jack |
| Length (mm) | 12.5 |
| Width (mm) | 9 |
| Voltage Rating (Vdc) (V) | 24 |
| Insertion Depth/Length (mm) | 8.1 |
| Dimensions LxWxH (mm) | 12.5 x 9 x 6 |
| Inner Diameter (mm) | 1.65 |
| Dimensions LxWxH (in) | 0.49 x 0.35 x 0.24 |
| RoHS | True |
| Current Rating (A) | 5 |
| Height (mm) | 6 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Orientation | Horizontal |
| Mounting Type | Surface Mount |
Inventory for the PJ1-021-SMT-TR by Same Sky from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
4,500 x $0.44
|
Visit Site | |
|
★ Featured
|
|
1 x $0.93
|
Visit Site | |
|
★ Featured
|
|
1 x $0.93
|
Visit Site |
No issues have been reported for the PJ1-021-SMT-TR
