PKLCS1212E20A0-R1
Buzzers Transducer, Externally Driven Piezo 1.5 V - 2kHz 70dB @ 1.5V, 10cm Surface Mount Solder Pads
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PKLCS1212E20A0-R1 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

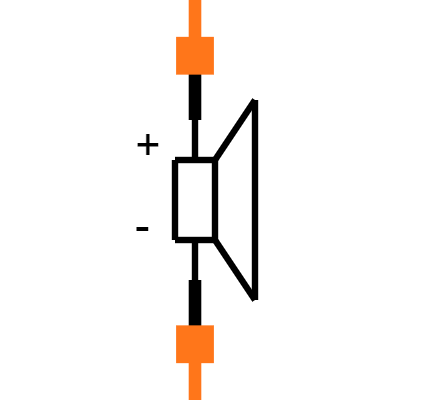

Symbol
No web preview
This Symbol is Available for

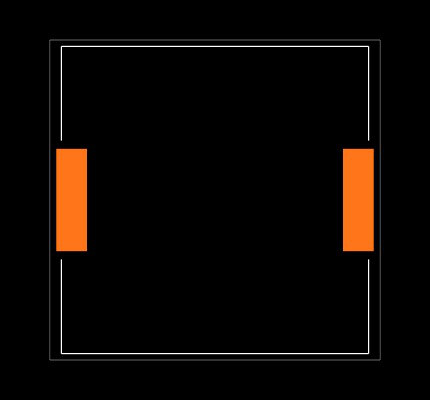

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PKLCS1212E20A0-R1
| Part Name | PKLCS1212E20A0-R1 |
| Manufacturer | Murata |
| Category | Piezo Buzzers |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=PKLCS1212E20A0-R1 |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=PKLCS1212E20A0-R1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 12 x 12 x 3 (mm) |
| Mounting Type | Surface Mount |
| Sound Level | 70 (dB) |
| Drive Type | External |
| Length | 12 (mm) |
| Maximum Supply Voltage (V) | 25 (V) |
| Depth | 12 (mm) |
| Maximum Frequency | 2 (kHz) |
| Minimum Operating Temperature | -40 (°C) |
| Height | 3 (mm) |
| Maximum Operating Temperature | +85 (°C) |
