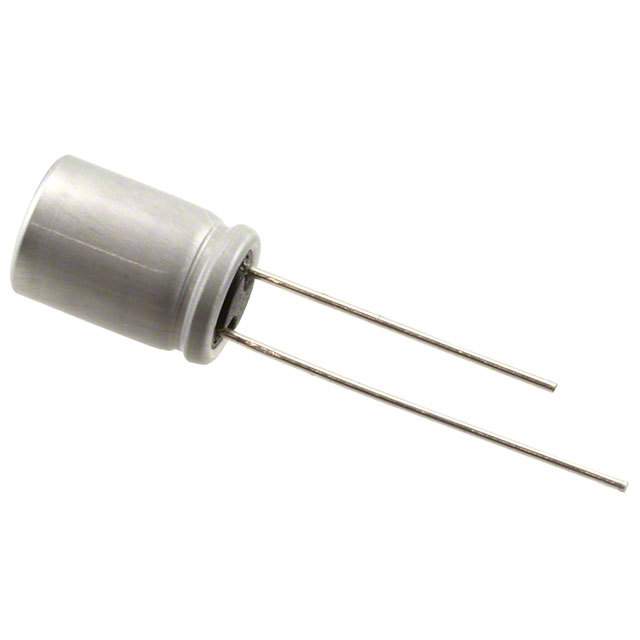

PLF0E681MDO1
CAP ALUM POLY 680UF 20% 2.5V T/H
Availability: Out of Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PLF0E681MDO1 by Nichicon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

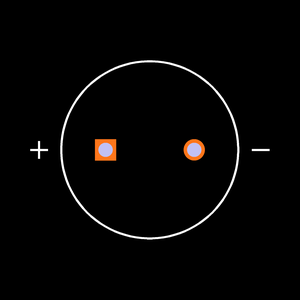

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PLF0E681MDO1
| Part Name | PLF0E681MDO1 |
| Manufacturer | Nichicon |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 8 (mm) |
| Ripple Current (A) | 5.7 (A) |
| Dimensions | 8 (Dia.) x 12 (mm) |
| Mounting Type | Through Hole |
| Series | LF |
| Equivalent Series Resistance | 6 (mΩ) |
| Height | 12 (mm) |
| Capacitance | 680 (µF) |
| Tolerance | ±20 (%) |
| Voltage (V) | 2.5 (V dc) |
| Leakage Current (A) | 340 μA |
| Lifetime | 2000 (h) |
| Lead Pitch | 3.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Technology | Polymer |
