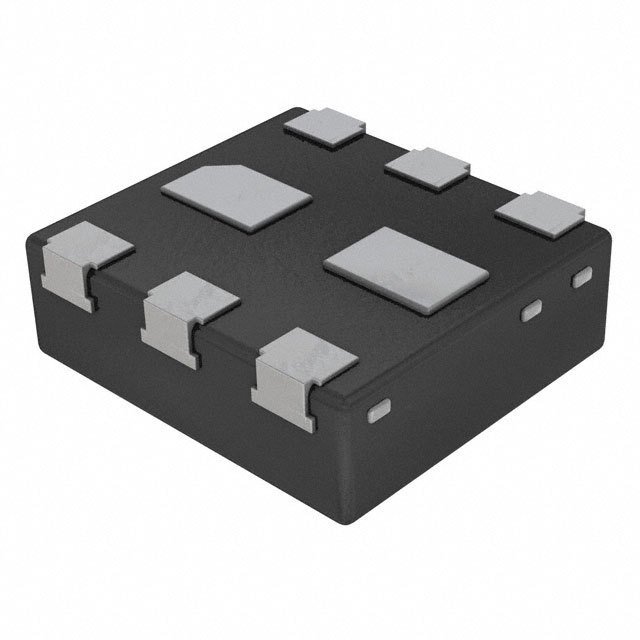

PMDXB600UNEZ
Mosfet Array 20V 600mA 265mW Surface Mount DFN1010B-6
Availability: In Stock
Package Type: SOT1216-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PMDXB600UNEZ by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

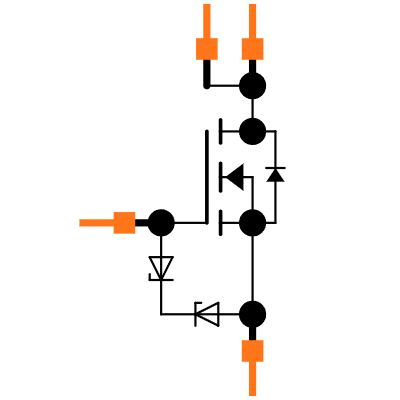

Symbol
No web preview
This Symbol is Available for

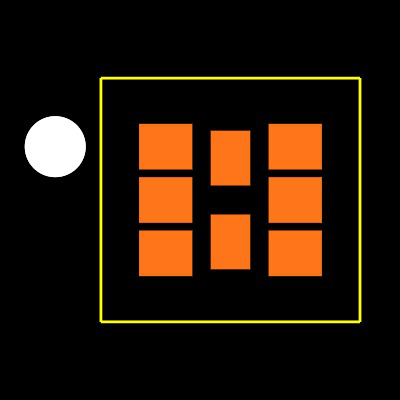

Footprint
No web preview
This Footprint is Available for

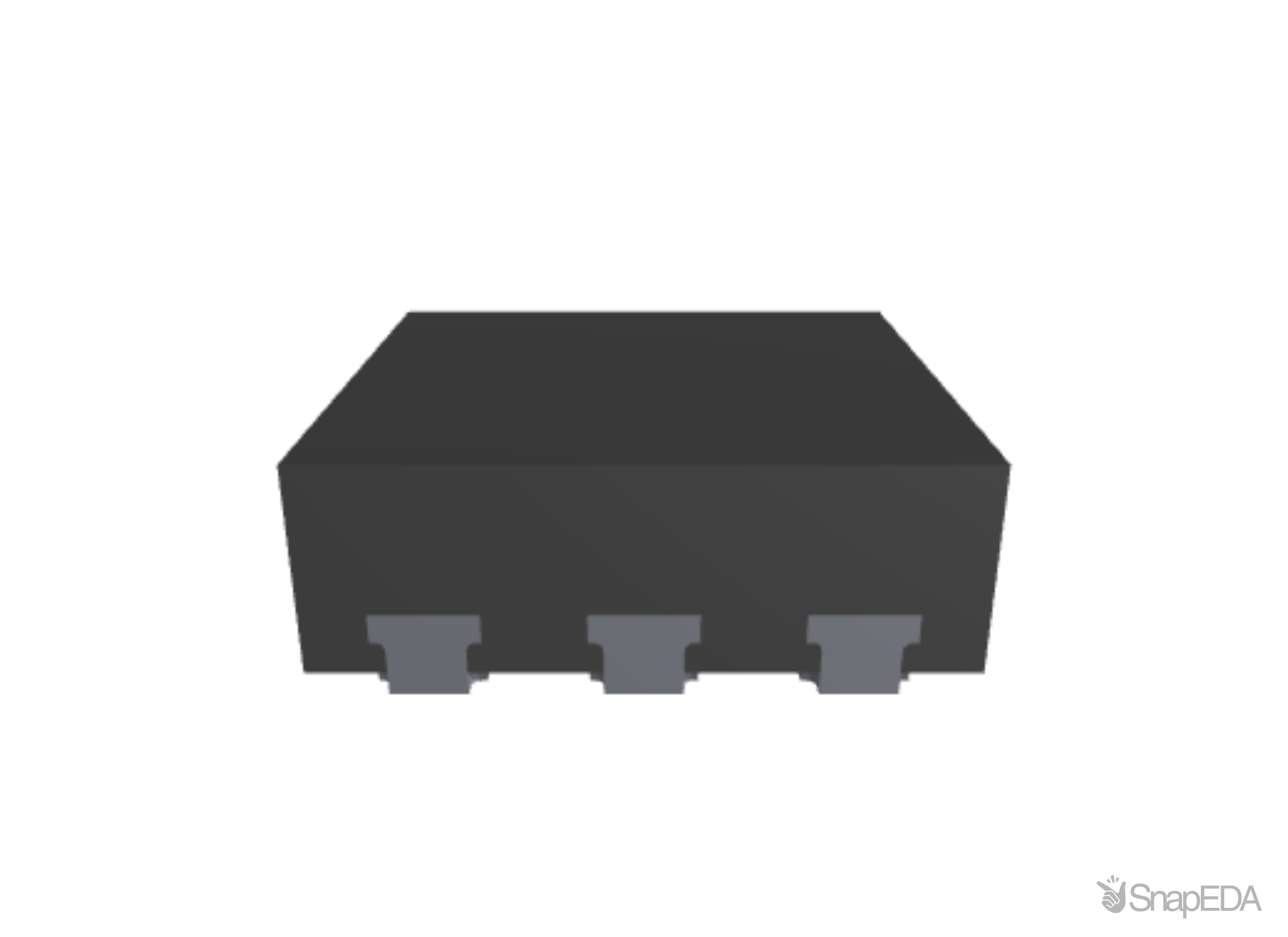

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PMDXB600UNEZ
| Part Name | PMDXB600UNEZ |
| Manufacturer | Nexperia USA |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 20 V |
| Width | 1.05 (mm) |
| Maximum Continuous Drain Current (A) | 600 mA |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 4025 mW |
| Maximum Gate Source Voltage (V) | 8 V |
| Length | 1.15 (mm) |
| Height | 0.4 (mm) |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 0.95 (V) |
| Maximum Drain Source Resistance | 3 Ω |
| Package Type | DFN1010B-6 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 0.45 (V) |
| Typical Gate Charge Vgs | 0.4 nC @ 10 V |
| Channel Type | N |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
Inventory for the PMDXB600UNEZ by Nexperia from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
13
|
1 x $0.33
|
Visit Site | |
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
Verical
|
13
|
11 x $0.33
|
Visit Site | |
|
★ Featured
|
255,000
|
4,645 x $0.06
|
Visit Site |
No issues have been reported for the PMDXB600UNEZ
If you experienced any issues with the symbol or footprint, please report it.
