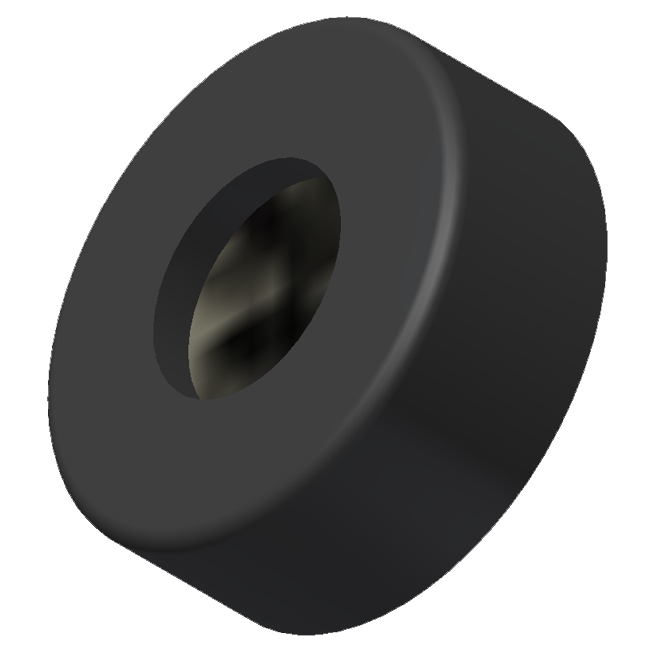

POW-1644L-B-R
6MM ECM MIC 50~16000HZ 44DB 2V 0.5MA IP57 OMNIDIRECTIONAL
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the POW-1644L-B-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates

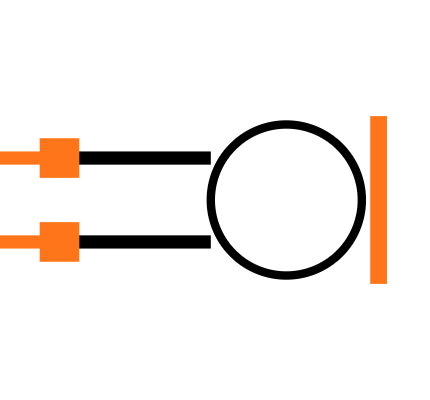

Symbol
No web preview
This Symbol is Available for

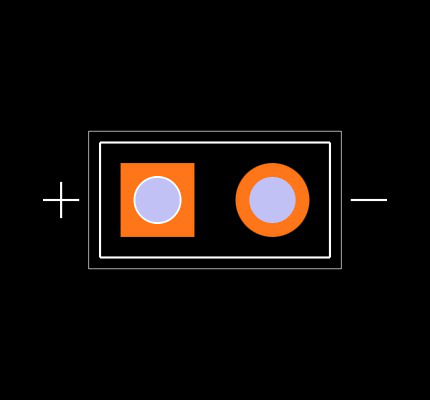

Footprint
No web preview
This Footprint is Available for

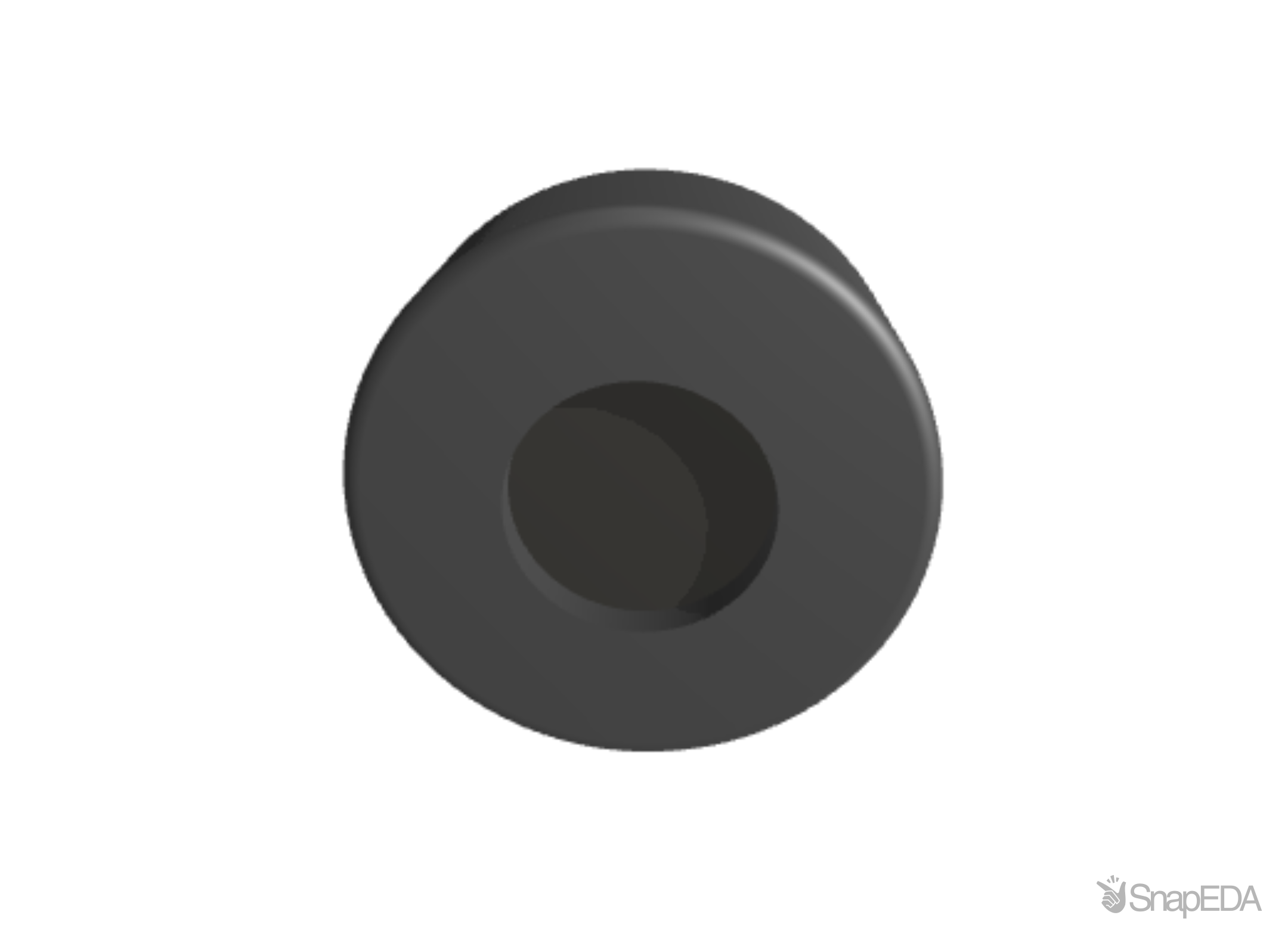

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the POW-1644L-B-R
| Part Name | POW-1644L-B-R |
| Manufacturer | PUI Audio |
| Directivity | Omni |
| Vcc Standard | 2.0 |
| Terminal | solder pads |
| Freq Response max in Khz | 16.0 |
| Lead Time | 110 |
| DW | Yes |
| MULT | 100 |
| Freq Response min in Khz | 0.05 |
| Status | Active |
| Sensivity Variation in dB | 3.0 |
| SPQ | 100 |
| REACH | Yes |
| SPU | BOX |
| RoHS | Yes |
| Acoustic Overload Point in dB | 110.0 |
| IP Rating | IP57 |
| Country Code | CN |
| Operating Temp. | -20 to 60 |
| Temp. Grade | Standard |
| Icc in mA | 0.5 |
| Resistance Loading in kOhm | 2.2 |
| HTS Code | 8518.10.8030 |
| MOQ | 100 |
| Vcc max | 10.0 |
| Product Link | https://www.puiaudio.com/products/pow-1644l-b-r |
| Sensitivity in dB | -44.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the POW-1644L-B-R by PUI Audio from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
606
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
72
|
|
Visit Site | |
| Newark |
72
|
|
Visit Site | |
| Onlinecomponents |
300
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| Verical |
300
|
|
Visit Site | |
| element14 Singapore |
72
|
|
Visit Site |
No issues have been reported for the POW-1644L-B-R
If you experienced any issues with the symbol or footprint, please report it.
