PP-013

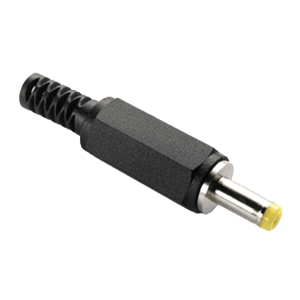

1.7 x 4 mm, Hexagonal Cover, Strain Relief, Modular, Dc Power Plug Connector
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PP-013 by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PP-013
| Part Name | PP-013 |
| Manufacturer | Same Sky |
| Mounting Style | Cable - Modular |
| Shielding | No |
| Outer Diameter (mm) | 4 |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pp-013 |
| Internal Switch(es) | 0 |
| Number of Conductors | 2 |
| Connector Type | Plug |
| Length (mm) | 43.5 |
| Width (mm) | 8 |
| Voltage Rating (Vdc) (V) | 24 |
| Insertion Depth/Length (mm) | 9.5 |
| Inner Diameter (mm) | 1.7 |
| Dimensions LxWxH (in) | 1.71 x 0.31 x 0.31 |
| RoHS | True |
| Current Rating (A) | 5 |
| Height (mm) | 8 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
