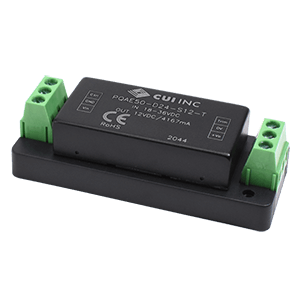

PQAE50-D24-S12-T
50 W, 2:1 Input Range, Single Regulated Output, Chassis Mount, 1500 Vdc Isolation, Dc-Dc Converter
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PQAE50-D24-S12-T by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PQAE50-D24-S12-T
| Part Name | PQAE50-D24-S12-T |
| Manufacturer | CUI Inc. |
| Output Voltage (Vdc) (V) | 12 |
| Number of Outputs | 1 |
| Operating Temp MAX (°C) | 60 |
| Input Ratio | 2:1 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/pqae50-t-series |
| Power (W) | 50 |
| Input Voltage (Vdc) (V) | 18 ~ 36 |
| Operating Temp MIN (°C) | -40 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Output Current (A) | 4.167 |
| Regulation | Yes |
| Protections | Over Current, Over Voltage, Short Circuit |
| Package Type | Chassis Mount |
| Dimensions LxWxH (mm) | 76 x 31.5 x 21.2 |
| Nom. Input Voltage (Vdc) (V) | 18, 20, 24, 28, 30, 32, 36 |
| Special Features | Extended Temp Range, Remote On/Off Control |
| Operating Temp MAX (With Derating, °C) | 105 |
| Series Power (W) | 50 |
| Isolation (Vdc) | 1500 |
| Dimensions LxWxH (in) | 2.99 x 1.24 x 0.835 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the PQAE50-D24-S12-T
