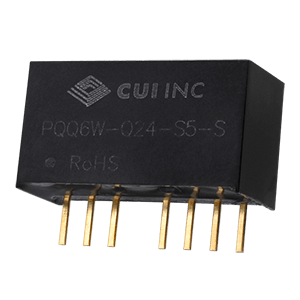

PQQ6W-Q24-D9-S
SnapVerified
6 W, 4:1 Input Range, Single Regulated Output, SIP8, 1600 Vdc Isolation, Dc-Dc Converter
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PQQ6W-Q24-D9-S by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PQQ6W-Q24-D9-S
| Part Name | PQQ6W-Q24-D9-S |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/pqq6w-s-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 9/-9 |
| Regulation | Yes |
| Protections | Over Current, Short Circuit |
| Dimensions LxWxH (mm) | 22 x 9.5 x 12 |
| Operating Temp MAX (With Derating, °C) | 105 |
| Operating Temp MAX (°C) | 71 |
| Package Type | SIP |
| Nom. Input Voltage (Vdc) (V) | 12, 14, 15, 18, 20, 24, 28, 30, 32, 36, 9 |
| Isolation (Vdc) | 1600 |
| Number of Outputs | 2 |
| Power (W) | 6 |
| Input Voltage (Vdc) (V) | 9 ~ 36 |
| Output Current (A) | 0.333/-0.333 |
| Special Features | Extended Temp Range, Remote On/Off Control |
| Operating Temp MIN (With Derating, °C) | -40 |
| Life Cycle Status | End of Life |
| Input Ratio | 4:1 |
| Standard Footprint | SIP8 |
| Series Power (W) | 6 |
| Dimensions LxWxH (in) | 0.87 x 0.37 x 0.47 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the PQQ6W-Q24-D9-S
