PR-002A

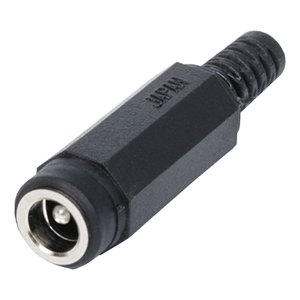

2.0 x 5.7 mm, Octagonal Cover, Dc Power Receptacle Connector
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PR-002A by CUI Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the PR-002A
Part Name | PR-002A |
Manufacturer | CUI Devices |
Mounting Style | Cable - Modular |
Shielding | No |
Orientation | Vertical |
Outer Diameter (mm) | 5.7 |
RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/pr-002a |
Internal Switch(es) | 0 |
Number of Conductors | 2 |
Connector Type | Receptacle |
Length (mm) | 41 |
Number of Ports | 1 |
Voltage Rating (Vdc) (V) | 24 |
Width (mm) | 10 |
Insertion Depth/Length (mm) | 9.3 |
Inner Diameter (mm) | 2 |
Dimensions LxWxH (in) | 1.61 x 0.39 x 0.39 |
Current Rating (A) | 4 |
Height (mm) | 10 |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
