PRC10W-72-D15
SnapVerified
10 W, 18:1 Input Range, Single/Dual Regulated Outputs, DIP, 4200 Vdc Isolation, Dc-Dc Converter
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PRC10W-72-D15 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

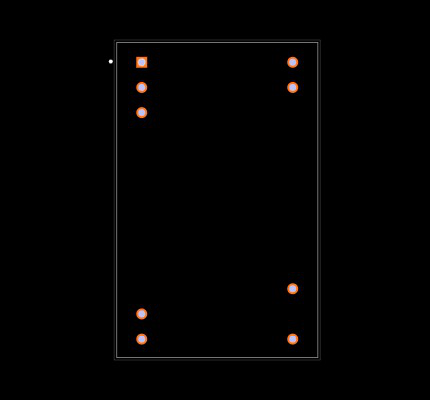

Footprint
No web preview
This Footprint is Available for

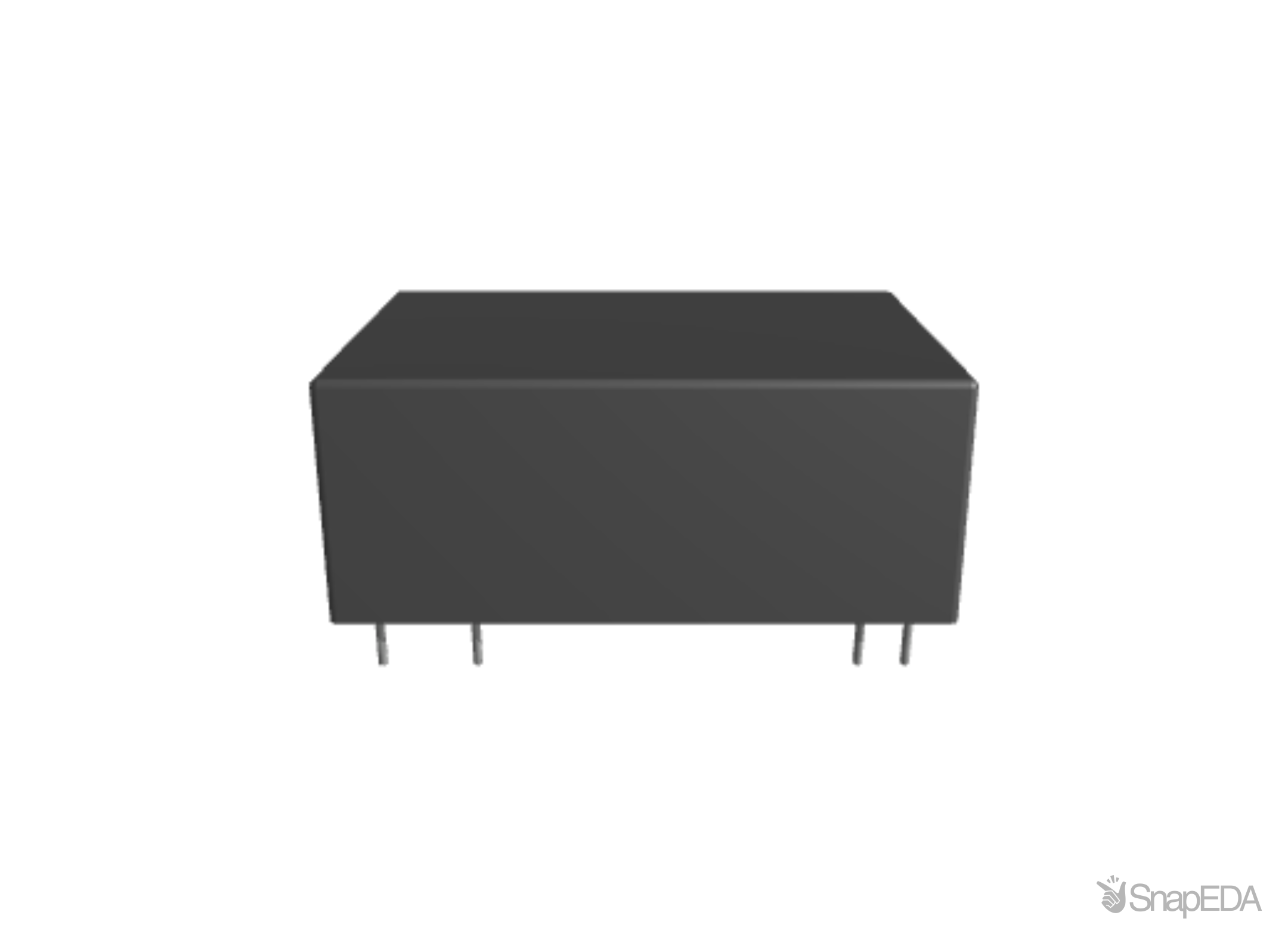

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PRC10W-72-D15
| Part Name | PRC10W-72-D15 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/prc10w-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 15/-15 |
| Regulation | Yes |
| Protections | Over Current, Over Voltage, Short Circuit, Under Voltage Lock Out |
| Dimensions LxWxH (mm) | 31.8 x 20.3 x 12.7 |
| Operating Temp MAX (With Derating, °C) | 100 |
| Operating Temp MAX (°C) | 62 |
| Package Type | DIP |
| Isolation (Vdc) | 4200 |
| Safety Standards | 62368 |
| Number of Outputs | 2 |
| Safety Approvals | CE, UKCA, UL/cUL |
| Power (W) | 10 |
| Input Voltage (Vdc) (V) | 8.5 ~ 160 |
| Output Current (A) | 0.333/-0.333 |
| Special Features | Extended Temp Range, Remote On/Off Control |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Input Ratio | 18:1 |
| Standard Footprint | DIP7 |
| Series Power (W) | 10 |
| Dimensions LxWxH (in) | 1.25 x 0.8 x 0.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the PRC10W-72-D15 by CUI Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
18
|
|
Visit Site | |
| Farnell UK |
30
|
|
Visit Site | |
| Newark |
30
|
|
Visit Site | |
| element14 Singapore |
30
|
|
Visit Site |
No issues have been reported for the PRC10W-72-D15
