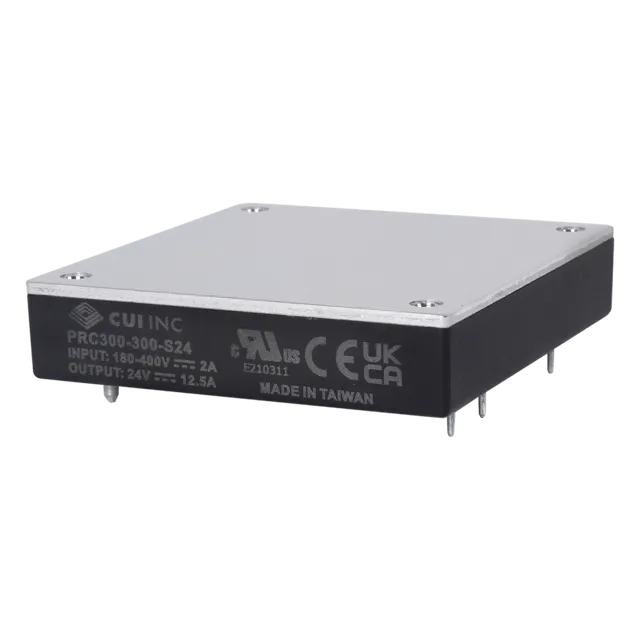

PRC300-300-S48
SnapVerified
48 Vdc, 6.25 A, 300 W, 180~400 Vdc Input Range
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PRC300-300-S48 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

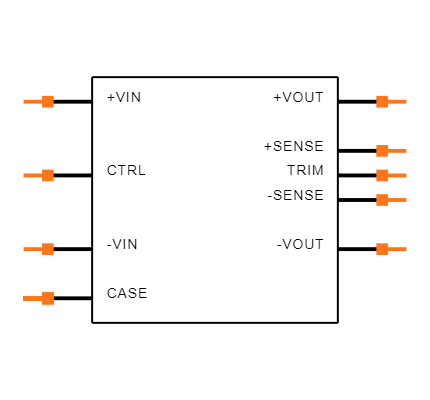

Symbol
No web preview
This Symbol is Available for

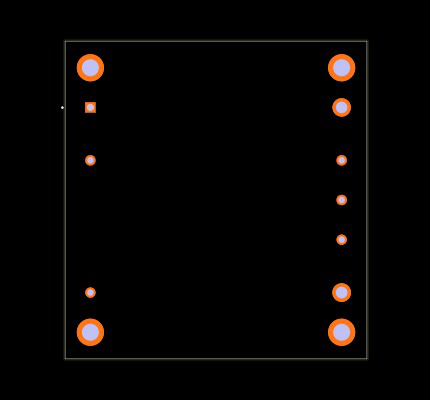

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PRC300-300-S48
| Part Name | PRC300-300-S48 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/prc300-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 48 |
| Regulation | Yes |
| Protections | Input UVLO, Over Current, Over Temperature, Over Voltage, Short Circuit Protection |
| Dimensions LxWxH (mm) | 50.8 x 25.4 x 10.5 |
| Operating Temp MAX (°C) | 100 |
| Package Type | DIP |
| Isolation (Vdc) | 4200 |
| Safety Standards | 60950, 62368 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UKCA, UL/cUL |
| Power (W) | 300 |
| Input Voltage (Vdc) (V) | 180 ~ 400 |
| Output Current (A) | 6.25 |
| Special Features | Output Voltage Trim, Remote ON/OFF, Baseplate Cool |
| RoHS | True |
| Life Cycle Status | New Product |
| Input Ratio | 2:1 |
| Grade | Commercial |
| Standard Footprint | 1/2 Brick |
| Series Power (W) | 300 |
| Dimensions LxWxH (in) | 2 x 1 x 0.41 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
