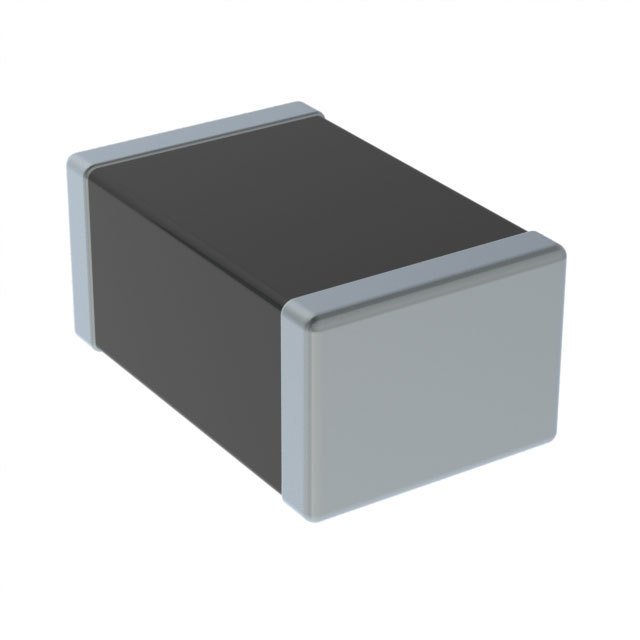

PRG21BC3R3MM1RA
Ceramic PTC Resettable Fuse 20V 180 mA Ih Surface Mount 0805 (2012 Metric)
Availability: In Stock
Package Type: 2012
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PRG21BC3R3MM1RA by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PRG21BC3R3MM1RA
| Part Name | PRG21BC3R3MM1RA |
| Manufacturer | Murata |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=PRG21BC3R3MM1RA |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2 x 1.25 x 0.9 (mm) |
| Tolerance | ±20 (%) |
| Package Case | 0805 (2012M) |
| Series | POSISTOR PRG |
| Depth | 1.25 (mm) |
| Resistance 25 C | 3.3 (Ω) |
| Height | 0.9 (mm) |
| Length | 2 (mm) |
| Minimum Operating Temperature | -10 (°C) |
| Maximum Operating Temperature | +60 (°C) |
| Temperature Coefficient Type | PTC |
