PRO-IS-578

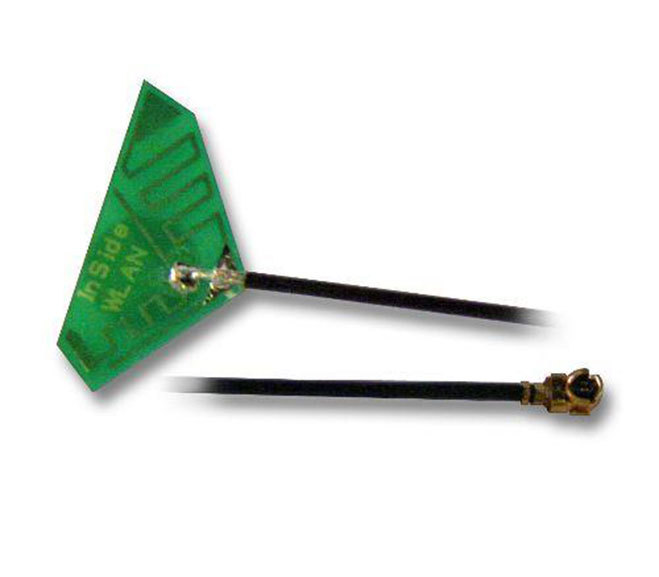

2.4/5.5GHZ WI-FI/BT/BLE BOARD ANT IPEX (F)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PRO-IS-578 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PRO-IS-578
| Part Name | PRO-IS-578 |
| Manufacturer | Abracon LLC |
| Frequency Range | 2400 ~ 2485 | 5150 ~ 5858 |
| Gain Maximum | 2.5 |
| Mounting | Adhesive Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Width | 11.27 |
| Type | Internal/Embedded |
| Bandwidth Max | 700 |
| Frequency Minimum | 2400 |
| Sub-type | Board |
| Gain Display | 2.5 | 1.6 |
| Length | 22 |
| ESD | No |
| Bandwidth Min | 85 |
| RoHS | Yes |
| Polarization | Linear |
| Protocol | Wi-Fi/BT, Wi-Fi, BT/BLE/ZigBee, ISM |
| Frequency Maximum | 5850 |
| Height | 0.8 |
| Gain Minimum | 1.6 |
| Bandwidth Range | 85 | 700 |
| MSL level | 1 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
