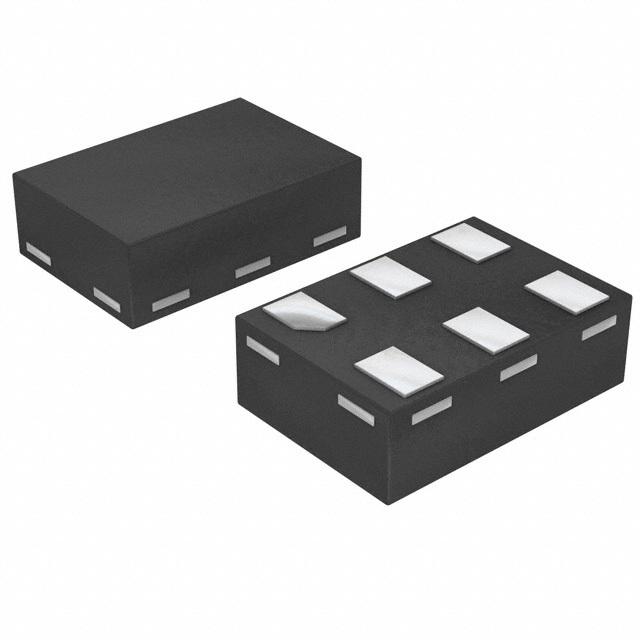

PRTR5V0U2F
- Clamp - Ipp Tvs Diode Surface Mount 6-XSON, SOT886 (1.45x1)
Availability: Out of Stock
Package Type: XFDFN-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PRTR5V0U2F by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

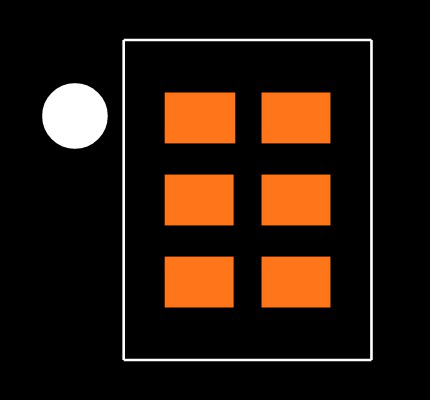

Footprint
No web preview
This Footprint is Available for

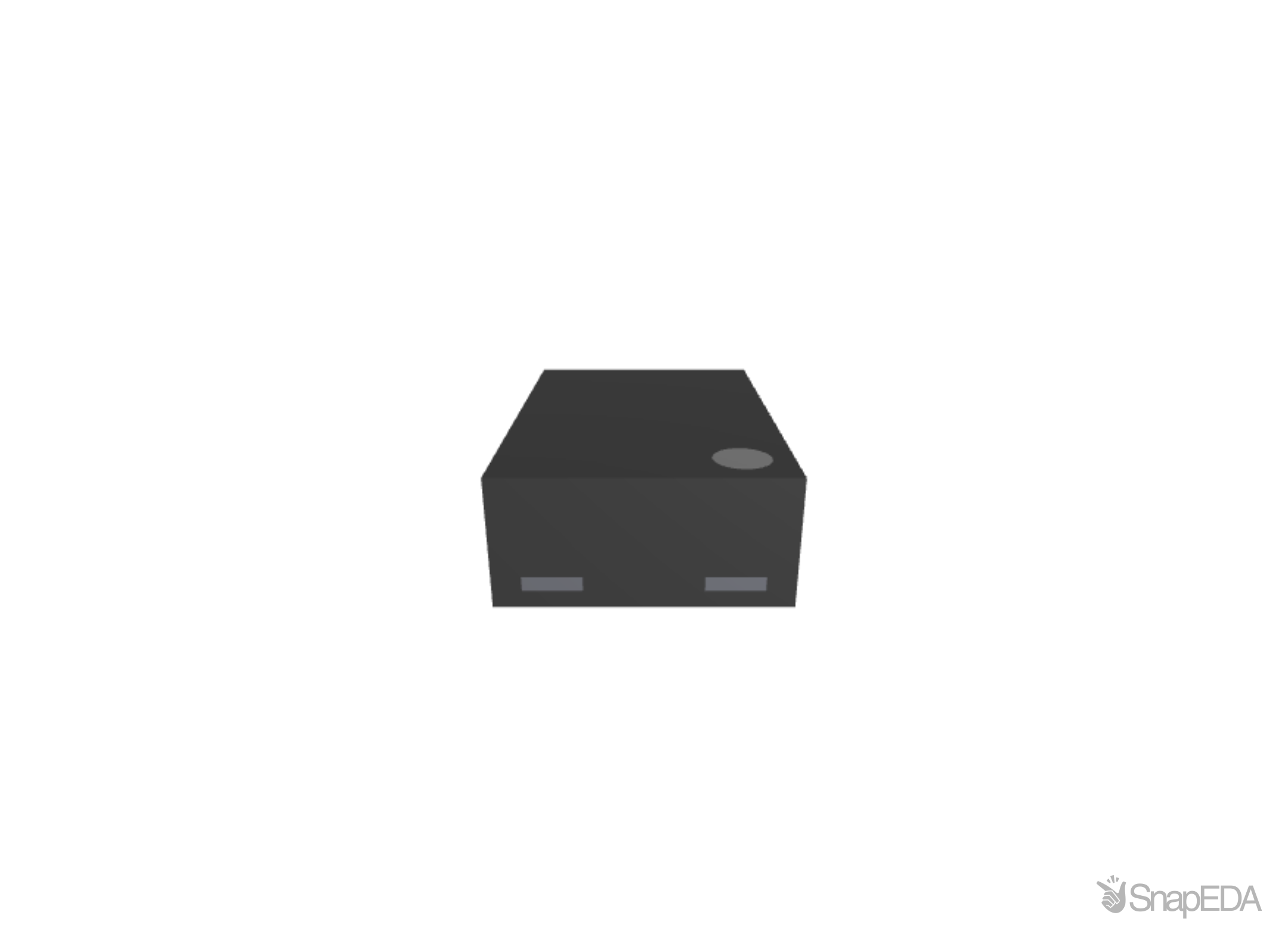

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PRTR5V0U2F
| Part Name | PRTR5V0U2F |
| Manufacturer | Nexperia USA |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 5.5 (V) |
| Dimensions | 1.5 x 1.05 x 0.5 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Maximum Reverse Leakage Current (A) | 100 (nA) |
| Esd Protection | Yes |
| Height | 0.5 (mm) |
| Width | 1.05 (mm) |
| Length | 1.5 (mm) |
| Package Type | SOT-886 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 6 |
