PSC150W-110-S48
SnapVerified
150 W, 12:1 Input Range, Single Regulated Output, DIP Package, 4200 Vdc Isolation, Dc-Dc Converter
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PSC150W-110-S48 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

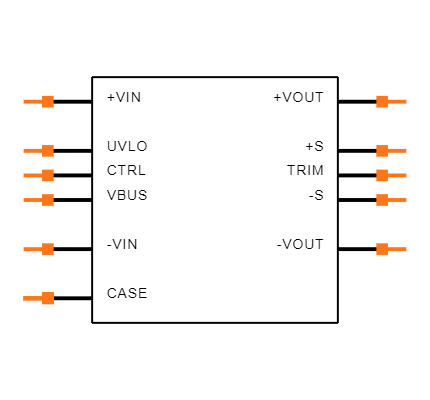

Symbol
No web preview
This Symbol is Available for

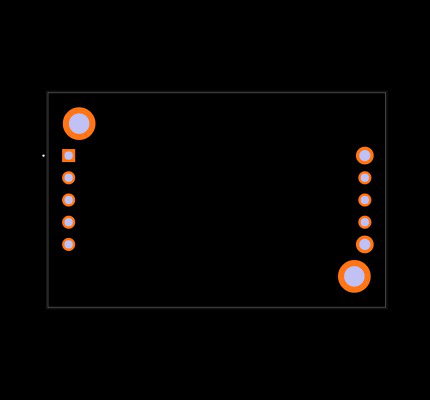

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PSC150W-110-S48
| Part Name | PSC150W-110-S48 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/psc150w-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 48 |
| Regulation | Yes |
| Protections | Over Current, Over Temperature, Over Voltage |
| Dimensions LxWxH (mm) | 57.9 x 36.8 x 12.7 |
| Operating Temp MAX (With Derating, °C) | 100 |
| Operating Temp MAX (°C) | 45 |
| Package Type | DIP |
| Nom. Input Voltage (Vdc) (V) | 110, 14, 15, 18, 20, 24, 28, 30, 32, 36, 40, 42, 48, 54, 60, 72 |
| Isolation (Vdc) | 4200 |
| Safety Standards | 62368 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UKCA |
| Power (W) | 150 |
| Input Voltage (Vdc) (V) | 14 ~ 160 |
| Output Current (A) | 3.13 |
| Special Features | Extended Temp Range, Output Remote Voltage Sense, Output Voltage Trim, Remote On/Off Control |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Life Cycle Status | New Product |
| Input Ratio | 12:1 |
| Grade | Commercial |
| Standard Footprint | 1/4 Brick |
| Series Power (W) | 150 |
| Dimensions LxWxH (in) | 2.28 x 1.45 x 0.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
