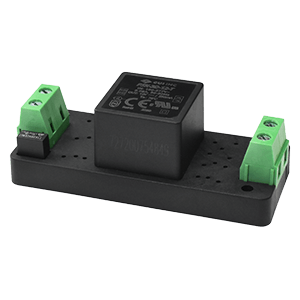

PSK-3D-5-T
5 Vdc, 0.6 A, 3 W
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PSK-3D-5-T by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PSK-3D-5-T
| Part Name | PSK-3D-5-T |
| Manufacturer | CUI Inc. |
| Safety Standards | 60335, 61558, 62368 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UL/cUL |
| Input Voltage (Vac) (V) | 85 ~ 305 |
| Operating Temp MAX (°C) | 70 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/psk-3d-t-series |
| Grade | Commercial |
| Power (W) | 3 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 5 |
| Mounting Style | Chassis |
| Protections | Over Current, Over Voltage, Short Circuit |
| Package Type | Encapsulated |
| Nom. Input Voltage (Vac) (V) | 110, 110/230, 230, 277 |
| Dimensions LxWxH (mm) | 76 x 31.5 x 26.4 |
| Output Current (A) | 0.6 |
| Operating Temp MAX (With Derating, °C) | 85 |
| Series Power (W) | 3 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Dimensions LxWxH (in) | 2.99 x 1.24 x 1.04 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the PSK-3D-5-T by CUI from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
24 x $11.02
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the PSK-3D-5-T
