PT06E-10-6S(SR)

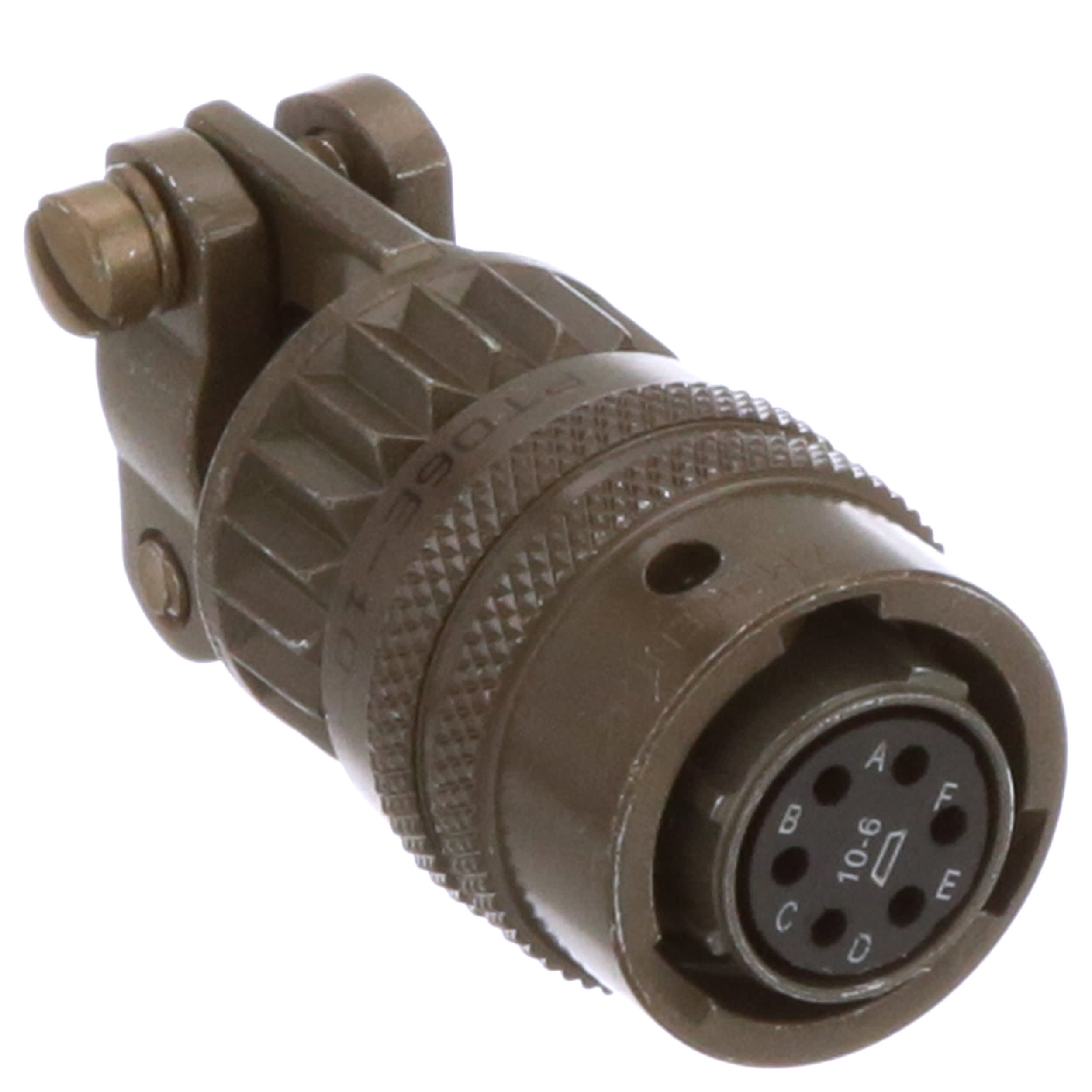

Connector metal circ class e str plug w/cable clamp size 10 6#20 solder socket | Amphenol Industrial PT06E-10-6S(SR)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PT06E-10-6S(SR) by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PT06E-10-6S(SR)
| Part Name | PT06E-10-6S(SR) |
| Manufacturer | Amphenol |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| Contact Material | Copper Alloy |
| Number Of Contacts | 6 |
| Mating Type | Bayonet |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 1 kV ac |
| Series | PT |
| Colour | Green |
| Shell Size | 10 |
| Contact Gender | Female |
| Housing Material | Aluminium |
| Gender | Male |
| Connector Size | Miniature |
| Minimum Operating Temperature | -55 (°C) |
| Termination Method | Solder |
| Contact Plating | Gold |
| Strain Relief | Yes |
| Maximum Operating Temperature | +125 (°C) |
| Body Orientation | Straight |
| Shell Plating | Cadmium |
| Military Standard | MIL-DTL-26482 |
