PTM2-24-S3-S
SnapVerified
3.3 Vdc, 0.606 A, 2 W, 24 Vdc Input Range
IEC 60601 Medical Certified
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTM2-24-S3-S by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

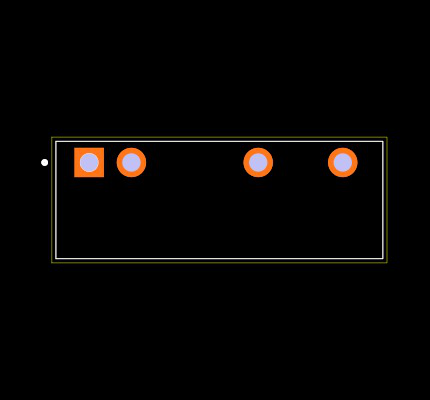

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTM2-24-S3-S
| Part Name | PTM2-24-S3-S |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/ptm2-s-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 3.3 |
| Regulation | Yes |
| Protections | Short Circuit Protection |
| Dimensions LxWxH (mm) | 19.65 x 7.05 x 11.5 |
| Operating Temp MAX (With Derating, °C) | 95 |
| Operating Temp MAX (°C) | 95 |
| Package Type | SIP |
| Nom. Input Voltage (Vdc) (V) | 24 |
| Isolation (Vdc) | 6000 |
| Safety Standards | 60601, 62368 |
| Number of Outputs | 1 |
| Safety Approvals | CE, cUL/UL, UKCA |
| Power (W) | 2 |
| Input Voltage (Vdc) (V) | 21.6 ~ 26.4 |
| Output Current (A) | 0.606 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Input Ratio | 1:1 |
| Grade | Commercial, Medical |
| Standard Footprint | SIP4 |
| Series Power (W) | 2 |
| Dimensions LxWxH (in) | 0.77 x 0.28 x 0.45 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
