PTN24B-C1015K1B
24 mm, Horizontal, Linear, 10 KO, Through Hole, Knurled Shaft Rotary Potentiometer
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTN24B-C1015K1B by CUI Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

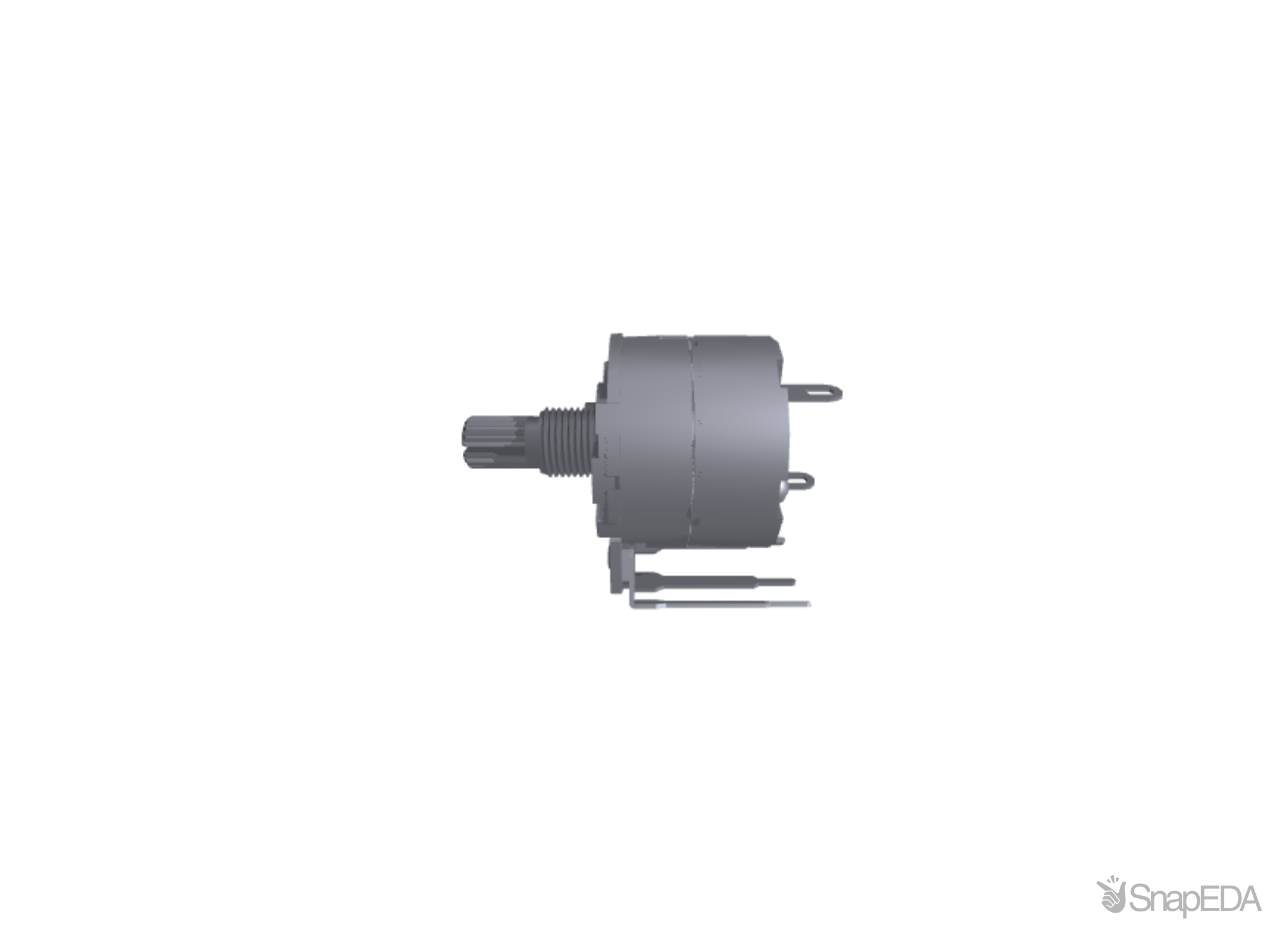

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the PTN24B-C1015K1B
Part Name | PTN24B-C1015K1B |
Manufacturer | CUI Devices |
Taper | Linear |
Rotor | Shafted |
Size (mm) | 24 |
Mounting Type | Through Hole |
Operating Temp MAX (°C) | 75 |
RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/ptn24b-c1015k1b |
Resistance (kΩ) | 10 |
Series | PTN24 |
Power (W) | 0.5 |
Potentiometer Type | Rotary |
Operating Temp MIN (°C) | -10 |
Number of Turns | 1 |
Bushing | No Bushing |
Detent | No Detent |
Resistance Tolerance (%) | 20 |
Shaft Length (mm) | 15 |
Shaft Style | Knurled (18 Teeth) |
Termination | Rear Pins |
Rotation (°) | 300 |
Orientation | Horizontal |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
