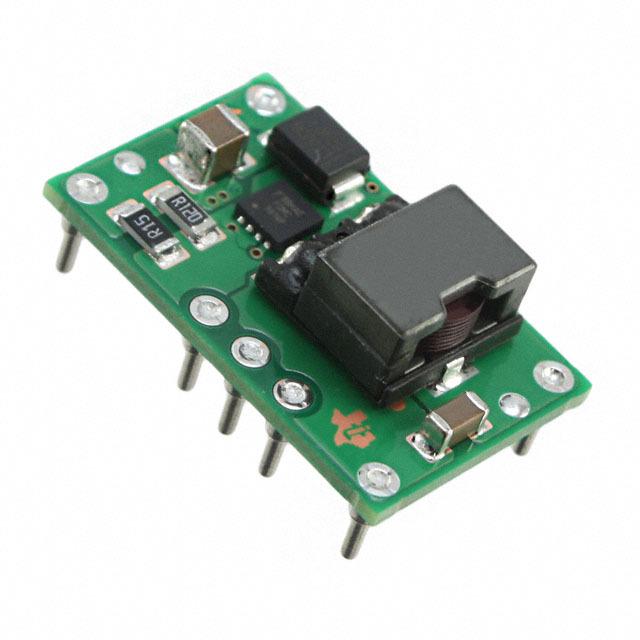

PTN78060WAH
3-A, Wide-Input, Adjustable Switching Regulator Module
Availability: In Stock
Package Type: THROUGH-HOLE MODULE-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTN78060WAH by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTN78060WAH
| Part Name | PTN78060WAH |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Output Type | Adjustable |
| Package Type | ThroughHole Module |
| Maximum Output Voltage (V) | 12.6 V |
| Minimum Output Voltage (V) | 2.5 V |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 7 |
| Minimum Input Voltage (V) | 7 V |
