PTP15-12-S5
SnapVerified
5 Vdc, 3 A, 15 W, 9~18 Vdc Input Range
IEC 60601 Medical Certified
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTP15-12-S5 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

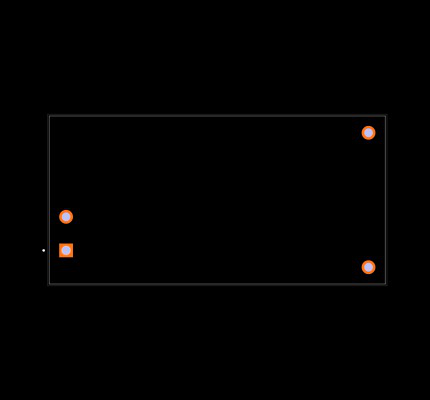

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTP15-12-S5
| Part Name | PTP15-12-S5 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/ptp15-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 5 |
| Regulation | Yes |
| Protections | Output over Current, Over Voltage, Short Circuit |
| Dimensions LxWxH (mm) | 50.8 x 25.4 x 12 |
| Operating Temp MAX (With Derating, °C) | 70 |
| Operating Temp MAX (°C) | 100 |
| Package Type | DIP |
| Nom. Input Voltage (Vdc) (V) | 12, 14, 15, 18, 9 |
| Isolation (Vdc) | 5600 |
| Safety Standards | 60601 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UKCA |
| Power (W) | 15 |
| Input Voltage (Vdc) (V) | 9 ~ 18 |
| Output Current (A) | 3 |
| Special Features | Extended Temp Range |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Input Ratio | 2:1 |
| Grade | Commercial, Medical |
| Standard Footprint | 2" x 1" |
| Series Power (W) | 15 |
| Dimensions LxWxH (in) | 2 x 1 x 0.47 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the PTP15-12-S5 by CUI Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Sager |
|
|
Visit Site |
No issues have been reported for the PTP15-12-S5
