PTP15-24-S12
SnapVerified
15 W, 2:1 Input Ratio, Single Regulated Output, DIP, 5600 Vdc Isolation, Dc-Dc Converter
IEC 60601 Medical Certified
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTP15-24-S12 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

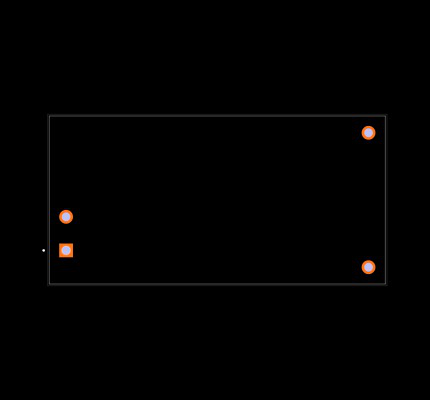

Footprint
No web preview
This Footprint is Available for

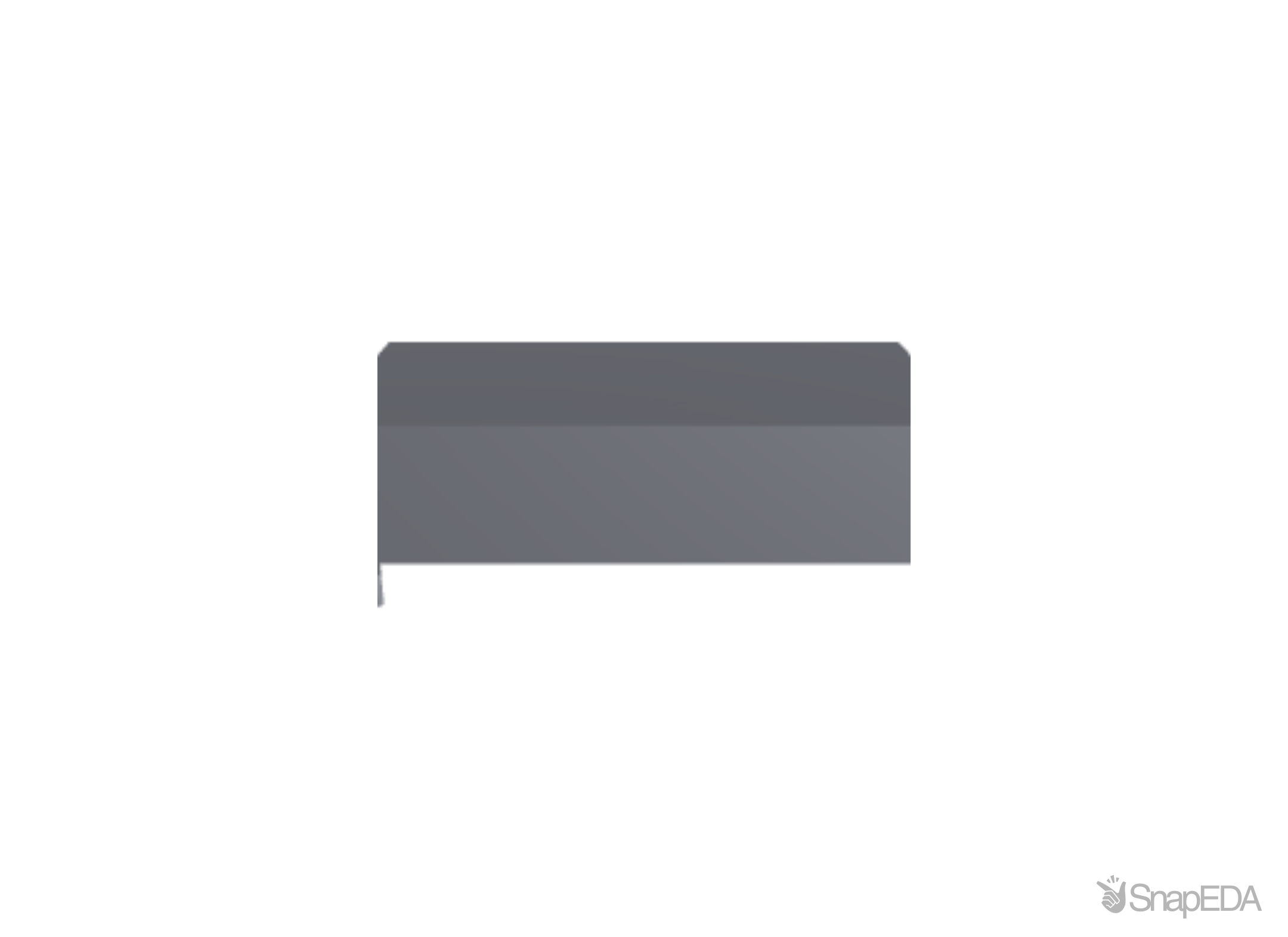

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTP15-24-S12
| Part Name | PTP15-24-S12 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/ptp15-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 12 |
| Regulation | Yes |
| Protections | Output over Current, Over Voltage, Short Circuit |
| Dimensions LxWxH (mm) | 50.8 x 25.4 x 12 |
| Operating Temp MAX (With Derating, °C) | 70 |
| Operating Temp MAX (°C) | 100 |
| Package Type | DIP |
| Nom. Input Voltage (Vdc) (V) | 18, 20, 24, 28, 30, 32, 36 |
| Isolation (Vdc) | 5600 |
| Safety Standards | 60601 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UKCA |
| Power (W) | 15 |
| Input Voltage (Vdc) (V) | 18 ~ 36 |
| Output Current (A) | 1.25 |
| Special Features | Extended Temp Range |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Input Ratio | 2:1 |
| Grade | Commercial, Medical |
| Standard Footprint | 2" x 1" |
| Series Power (W) | 15 |
| Dimensions LxWxH (in) | 2 x 1 x 0.47 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the PTP15-24-S12
