PTSM 0,5/ 2-HV-2,5-SMD WH R24
SnapVerified

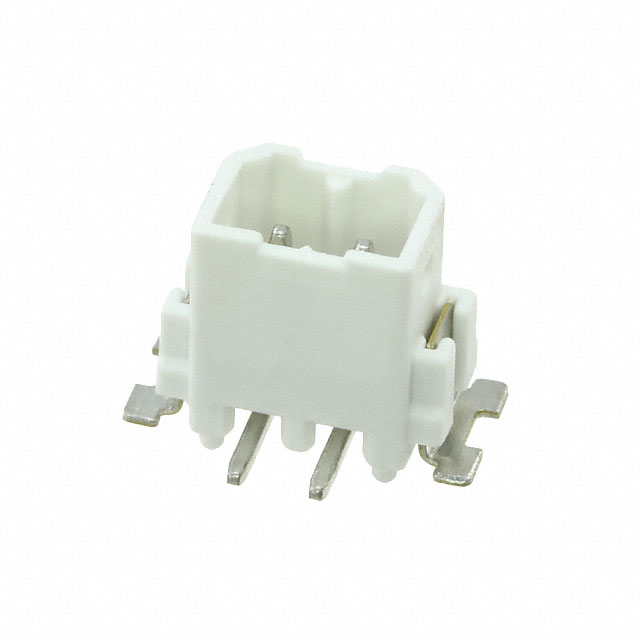

SSL Connector 2 Position Header, Male Pins Board to Cable/Wire 0.098" (2.50mm) Solder
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTSM 0,5/ 2-HV-2,5-SMD WH R24 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

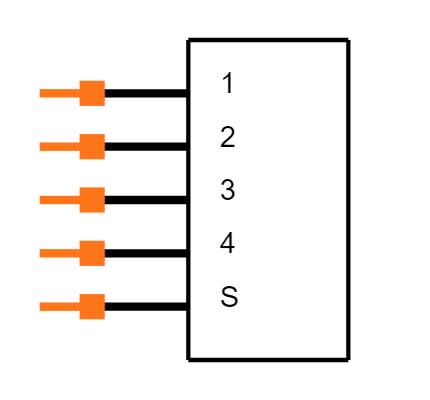

Symbol
No web preview
This Symbol is Available for

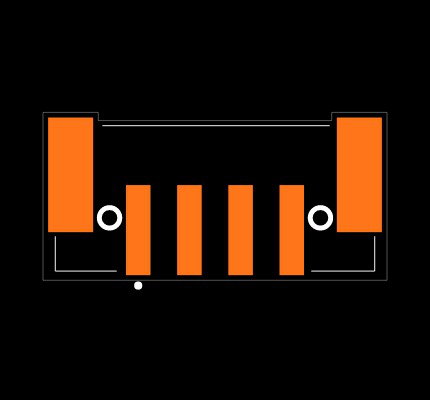

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTSM 0,5/ 2-HV-2,5-SMD WH R24
| Part Name | PTSM 0,5/ 2-HV-2,5-SMD WH R24 |
| Manufacturer | Phoenix Contact |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| No. Of Cycles | 10 |
| [w2] Coil Overall Dimension | ≤ 30.4 mm |
| Solder Pins Per Potential | 1 |
| GTIN | 4046356529877 |
| Contact Holder In Insertrequirements >20 N | Test passed |
| Mounting Type (mounting) | SMD soldering |
| Specification (insulation Resistance) | IECÂ 60512-3-1:2002-02 |
| Withdraw Strength Per Pos. Approx. | 3 N |
| Power-frequency Withstand Voltage (V) | 1.39 kV |
| Specification (thermal Test | Test Group C) | IECÂ 60512-5-1:2002-02 |
| Ambient Temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Number Of Potentials | 2 |
| Sweep Speed | 1Â octave/min |
| Specification (air Clearances And Creepage Distances | ) | IECÂ 60664-1:2007-04 |
| Insertion/withdrawal Cycles | 10 |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Specification (insertion And Withdrawal Forces ) | IECÂ 60512-13-2:2006-02 |
| Rated Voltage (iii/2) (V) | 160 V |
| Eclass (eclass-15.0) | 27460201 |
| Test Duration Per Axis | 2.5 h |
| Specification (durability Test) | IECÂ 60512-9-1:2010-03 |
| Metal Surface Contact Area (top Layer) | Tin (3 µm - 5 µm Sn) |
| Minimum Clearance Value - Non-homogenous Field (iii/2) | 1.5 mm |
| Contact Resistance | 2.2 mΩ |
| Specification | IECÂ 60512-1-1:2002-02 |
| Metal Surface Soldering Area (top Layer) | Tin (3 µm - 5 µm Sn) |
| Number Of Rows | 1 |
| Relative Humidity (storage/transport) | 30 % ... 70 % |
| Type | Standard |
| Rated Voltage (iii/3) (V) | 125 V |
| Minimum Creepage Distance (iii/3) | 1.9 mm |
| Rated Surge Voltage (ii/2) (V) | 2.5 kV |
| Insulating Material | PA |
| Minimum Clearance Value - Non-homogenous Field (iii/3) | 1.5 mm |
| Pin Layout | Linear pad geometry |
| Product Type | PCB header |
| Minimum Clearance Value - Non-homogenous Field (ii/2) | 1.5 mm |
| Rated Insulation Voltage (ii/2) (V) | 320 V |
| Ambient Temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient Temperature (assembly) | -5 °C ... 100 °C |
| Classification Temperature Tc | 260 °C |
| Color (housing) | signal white (9003) |
| Minimum Creepage Distance (iii/2) | 1.5 mm |
| Rated Surge Voltage (iii/2) (V) | 2.5 kV |
| Pad Geometry | 1.2 x 4.4 mm |
| Cti According To Iec 60112 | 600 |
| Result | Test passed |
| Product Line | COMBICON Connectors XS |
| Insertion Strength Per Pos. Approx. | 5 N |
| Tested Number Of Positions | 8 |
| Eclass (eclass-13.0) | 27460201 |
| Type Of Packaging | 24 mm wide tape |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Width [w] | 10.6 mm |
| Corrosive Stress | 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle |
| Product Family | PTSM 0,5/..-HV-SMD WH |
| Insulating Material Group | I |
| Specification (contact Holder In Insert ) | IECÂ 60512-15-1:2008-05 |
| Test Directions | X-, Y- and Z-axis |
| Rated Surge Voltage (iii/3) (V) | 2.5 kV |
| Minimum Creepage Distance (ii/2) | 1.6 mm |
| [w] Tape Width | 24 mm |
| Insulation Resistance, Neighboring Positions | > 5 MΩ |
| Length [l] | 5 mm |
| Specification (vibration Test) | IECÂ 60068-2-6:2007-12 |
| [a] Coil Diameter | ≤ 330 mm |
| Number Of Connections | 2 |
| Process | Reflow soldering |
| Comparative Tracking Index (iec 60112) | CTI 600 |
| Nominal Current In (A) | 6 A |
| Frequency | 10 - 150 - 10 Hz |
| Specification (polarization And Coding ) | IECÂ 60512-13-5:2006-02 |
| Etim (etim 10.0) | EC002637 |
| Metal Surface Contact Area (middle Layer) | Nickel (1.3 µm - 3 µm Ni) |
| Rated Insulation Voltage (iii/2) (V) | 160 V |
| Product Description | PCB headers, nominal cross section: 0.5 mm2, color: signal white, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PTSM 0,5/..-HV-SMD WH, pitch: 2.5 mm, mounting: SMD soldering, pin layout: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Pin connector pattern alignment: Standard, locking: without, mounting method: without, type of packaging: 24 mm wide tape, Article with anti-rotation pin |
| Specification (climatic Test) | ISOÂ 6988:1985-02 |
| Contact Resistance R2 | 2.4 mΩ |
| Contact Resistance R1 | 2.2 mΩ |
| Thermal Stress | 100 °C/168 h |
| Moisture Sensitive Level | MSL 1 |
| Height [h] | 7.5 mm |
| Impulse Withstand Voltage At Sea Level (V) | 2.95 kV |
| Unspsc (unspsc 21.0) | 39121400 |
| Flammability Rating According To Ul 94 | V0 |
| Nominal Voltage Un (V) | 160 V |
| Datasheet Url | https://product-download.phoenixcontact.com/8395671?response-content-disposition=inline;%20filename%3D%221778696_02_en_01.pdf%22&Expires=1775275265&Signature=aDLmBvQVm8Bivexfsa53KHreVcBZZLr-v2~2qbPeKxlM1cfsxp-CTphU99k82IVHTIAmrQe-hP1ph9xg85Ae2u53313YxBXlOvW8ZExqB~0upKsW8mStSwMjaPYEY8aXLJfCA0egj9d7XDFhuHC22f8Jw1uNchQl7DWQQsFC8fpbTJ12z8jLrtU1RPSQARu1zeZ0OviWRdqPTU1pocyUFKepeeUu-FXWlQSod4J44~3V-zYt~spog7xYEFQeSYAfC8vaqhVogN5-kN90h6q73biCjj9-XR8rY5Im0MHLn1N08R38JRTZwq~9h08U-KRZiWOOJCJKqCL5AJkF5NlRKQ__&Key-Pair-Id=K1I2N54A7B0GD |
| Solder Cycles In The Reflow | 3 |
| Outer Packaging Type | Transparent-Bag |
| Metal Surface Soldering Area (middle Layer) | Nickel (1.3 µm - 3 µm Ni) |
| Rated Insulation Voltage (iii/3) (V) | 125 V |
| Specification (resistance Of Inscriptions ) | IECÂ 60068-2-70:1995-12 |
| Mounting Type | without |
| Specification (dimension Check ) | IECÂ 60512-1-2:2002-02 |
| Rated Voltage (ii/2) (V) | 320 V |
| Pitch | 2.5 mm |
| Surface Characteristics | Tin-plated |
| Number Of Positions | 2 |
| Contact Material | Cu alloy |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the PTSM 0,5/ 2-HV-2,5-SMD WH R24
