PTV112-4420A-B503
Potentiometer Carbon Snap In Clip 50 kOhm Dual Gang Power 0.05W PTV Series | Bourns PTV112-4420A-B503
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PTV112-4420A-B503 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

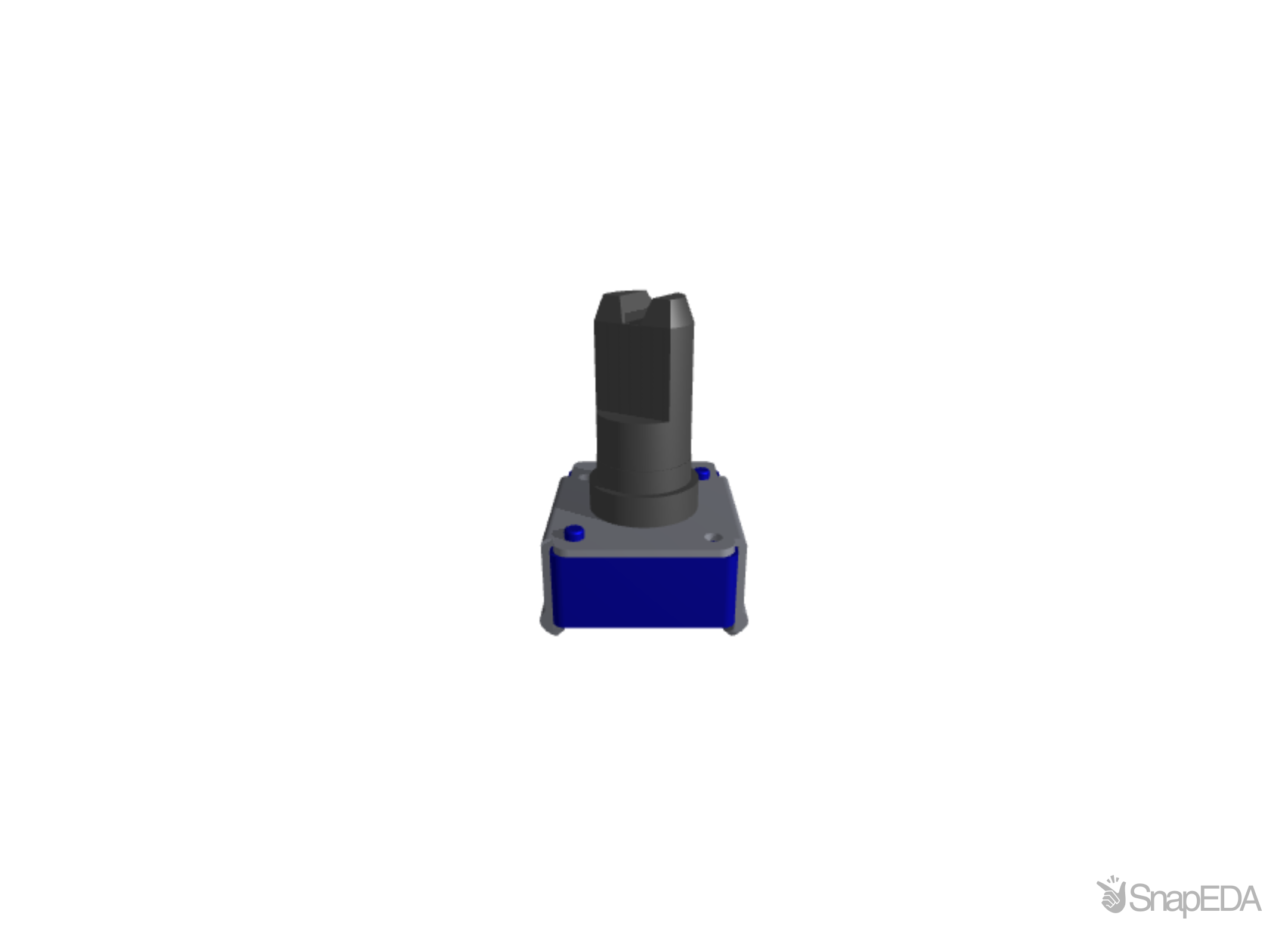

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PTV112-4420A-B503
| Part Name | PTV112-4420A-B503 |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Element Material | Carbon |
| Shaft Diameter | 6 mm |
| Mounting Type | Through Hole |
| Potentiometer Type | Rotary |
| Series | PTV |
| Termination Style | PC Pin |
| Number Of Gangs | 2 |
| Number Of Turns | 1 |
| Shaft Length | 20 (mm) |
| Actuator Type | Flatted Shaft |
| Electrical Taper | Linear |
| Power Rating | 0.05 (W) |
| Maximum Resistance | 50 (kΩ) |
| Tolerance | ±20 (%) |
