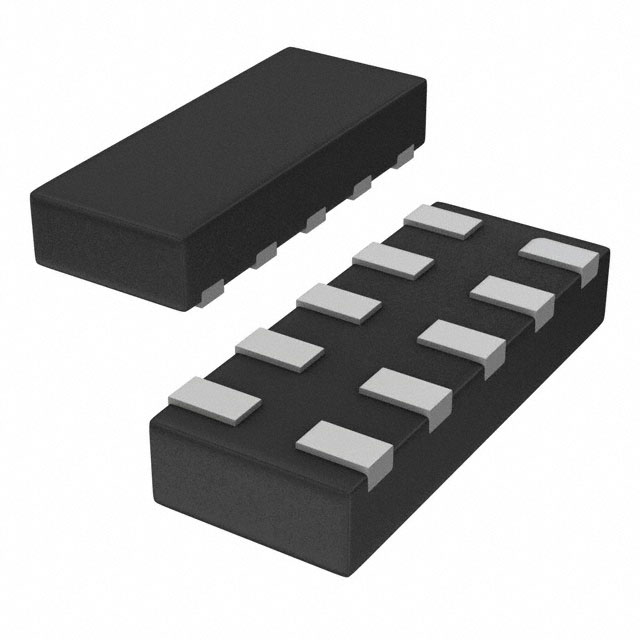

PUSB3FR4
3V (Typ) Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Availability: Out of Stock
Package Type: XFDFN-10
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PUSB3FR4 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

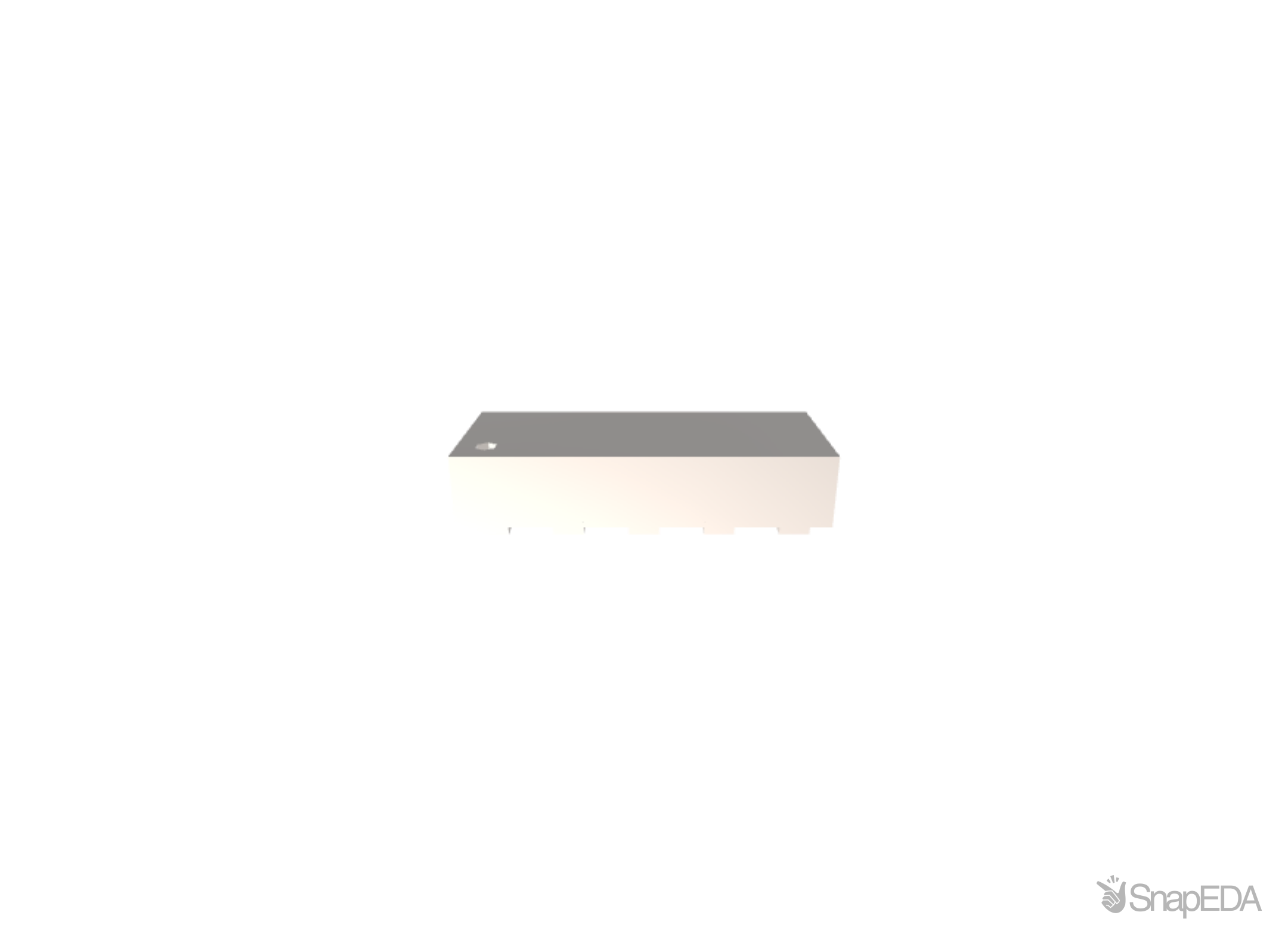

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PUSB3FR4
| Part Name | PUSB3FR4 |
| Manufacturer | Nexperia USA |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 7 (A) |
| Width | 1.1 (mm) |
| Dimensions | 2.6 x 1.1 x 0.45 (mm) |
| Minimum Breakdown Voltage (V) | 5.5 (V) |
| Esd Protection | Yes |
| Working Voltage (V) | 3.3 (V) |
| Maximum Reverse Leakage Current (A) | 100 (nA) |
| Height | 0.45 (mm) |
| Capacitance | 0.34 (pF) |
| Length | 2.6 (mm) |
| Package Type | DFN2510A |
| Number Of Elements Per Chip | 6 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 3 (V) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 10 |
