PV37W103C01B00

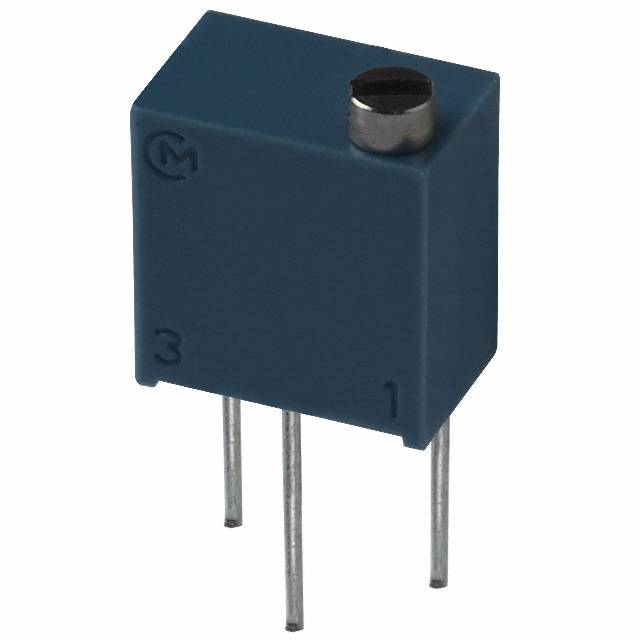

TRIMMER-1/4 SQ MT CERMET,PCB, 12 Turns, | Bourns PV37W103C01B00
Availability: In Stock
Package Type: PV37W
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PV37W103C01B00 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

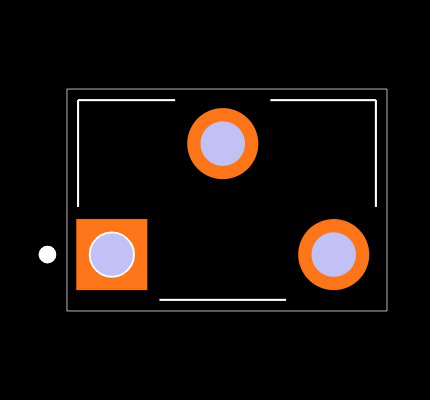

Footprint
No web preview
This Footprint is Available for

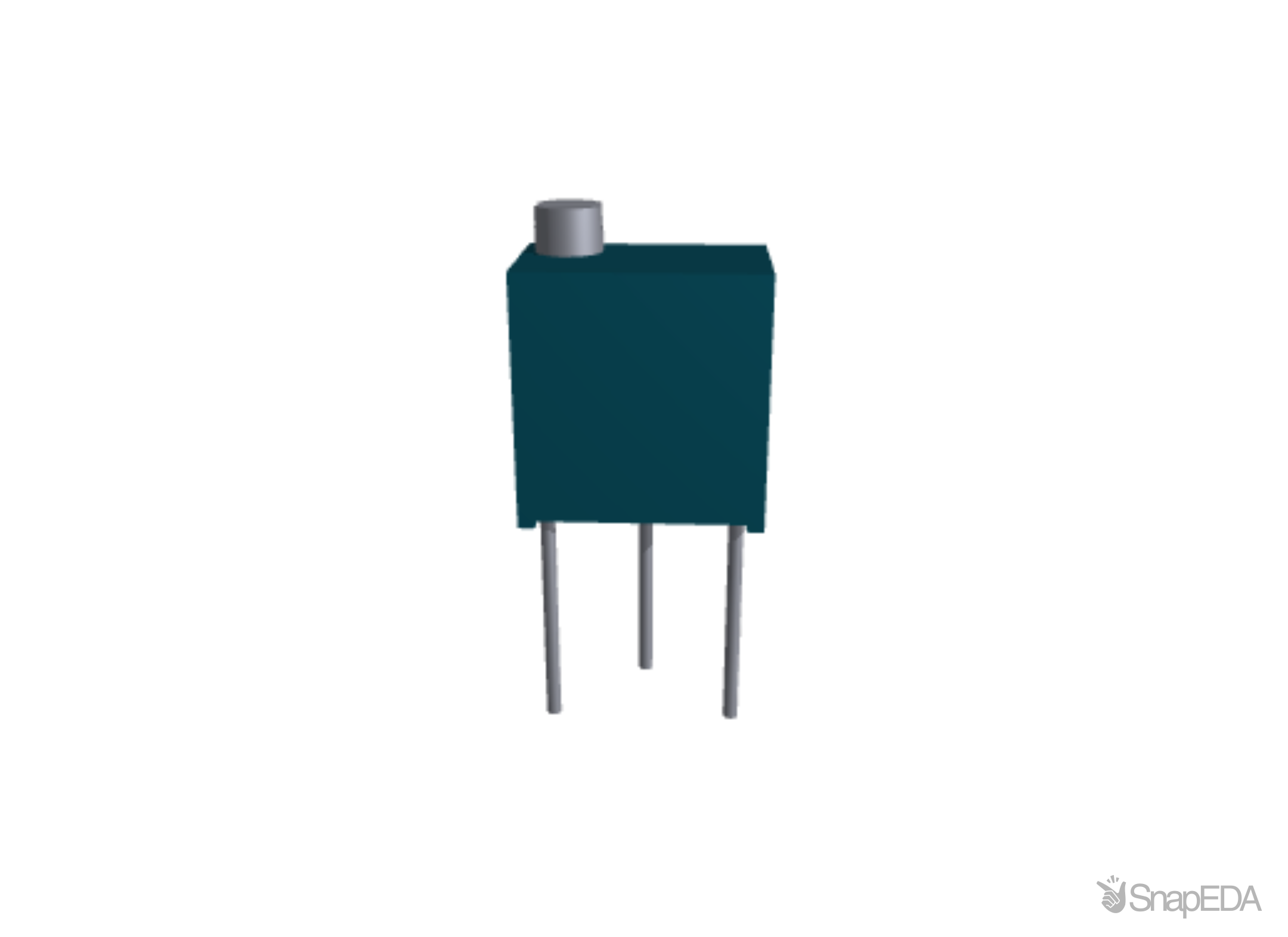

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PV37W103C01B00
| Part Name | PV37W103C01B00 |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shaft Diameter | 1.8 mm |
| Orientation | Top Adjust |
| Mounting Type | Through Hole |
| Series | PV37 |
| Termination Style | Solder Pin |
| Number Of Turns | 12 |
| Temperature Coefficient | ±150 (ppm/°C) |
| Length | 6.4 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Power Rating | 0.25 (W) |
| Maximum Resistance | 10 (kΩ) |
| Tolerance | ±10 (%) |
| Maximum Operating Temperature | +125 (°C) |
