PVC300-24-S15
SnapVerified
300 W, 4:1 Input Range, Single Regulated Output, DIP Package, 3000 Vdc Isolation, Dc-Dc Converter
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the PVC300-24-S15 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

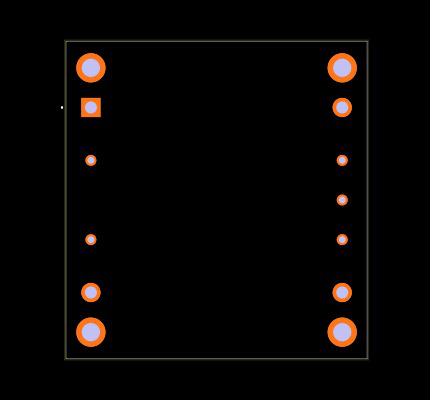

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the PVC300-24-S15
| Part Name | PVC300-24-S15 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/pvc300-series |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 15 |
| Regulation | Yes |
| Protections | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Dimensions LxWxH (mm) | 57.9 x 61 x 12.7 |
| Operating Temp MAX (°C) | 105 |
| Package Type | DIP |
| Nom. Input Voltage (Vdc) (V) | 12, 14, 15, 18, 20, 24, 28, 30, 32, 36, 9 |
| Isolation (Vdc) | 3000 |
| Safety Standards | 62368 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UKCA |
| Power (W) | 300 |
| Input Voltage (Vdc) (V) | 9 ~ 36 |
| Output Current (A) | 20 |
| Special Features | Baseplate Cooling, Remote On/Off Control, Output V |
| RoHS | True |
| Life Cycle Status | New Product |
| Input Ratio | 4:1 |
| Standard Footprint | 1/2 Brick |
| Series Power (W) | 300 |
| Dimensions LxWxH (in) | 2.28 x 2.402 x 0.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
